312SM5/32
312SM5/32

312SM5/32

UGC PRE7233785
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.61 CAD - $1.61 CAD
$1.61 CAD
$1.61 CAD - $1.61 CAD
$1.61 CAD

Vendu en lots de : 12

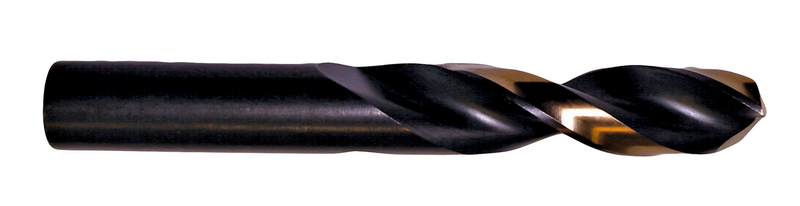

Foret étagé à queue cylindrique, diamètre 0,1563" (5/32) avec une longueur totale de 2,1/16" et une longueur de coupe de 1" selon la norme ANSI avec une pointe à 135° à auto-centrage, HSS avec finition bronze + revenu vapeur pour le perçage de 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM5/32
GradeST/Bronze
Product Number7233785
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.1563"
Cutting Diameter — mm (DC)3.97 mm
Cutting Diameter — Fractional5/32
Overall Length — in (OAL)2.0625"
Overall Length — mm (OAL)52.39 mm
Flute Length — in (LCF)1.0"
Flute Length — mm (LCF)25.4 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1563"
Connection Dia. — mm (DCON)3.97 mm
Drill Point Angle (SIG)135°
Tool Information
ShankTige cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233785
EAN7320760717882
File Type Download
312SM5/32 — 3D Model STP Download
312SM5/32 — Line Drawing PDF Download
