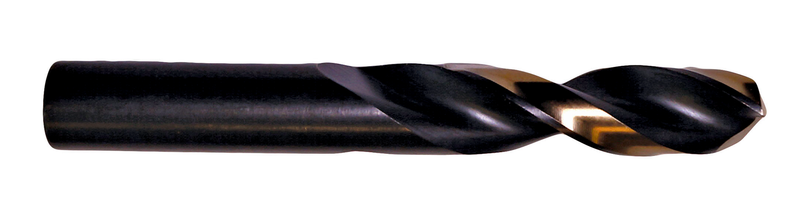

312SM3/16
312SM3/16

312SM3/16

UGC PRE7233787
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.79 CAD - $1.79 CAD
$1.79 CAD
$1.79 CAD - $1.79 CAD
$1.79 CAD

Vendu en lots de : 12

Forets courts à queue cylindrique, diamètre 0,1875" (3/16) avec une longueur totale de 2,3/16" et une longueur de goujure de 1,1/8" selon la norme ANSI, avec pointe auto-centrante à 135°, en HSS avec finition bronze trempé à la vapeur pour le perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM3/16
GradeST/Bronze
Product Number7233787
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.1875"
Cutting Diameter — mm (DC)4.76 mm
Cutting Diameter — Fractional3/16
Overall Length — in (OAL)2.1875"
Overall Length — mm (OAL)55.56 mm
Flute Length — in (LCF)1.125"
Flute Length — mm (LCF)28.58 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.1875"
Connection Dia. — mm (DCON)4.76 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233787
EAN7320760717905
File Type Download
312SM3/16 — 3D Model STP Download
312SM3/16 — Line Drawing PDF Download
