312SM13/64
312SM13/64

312SM13/64

UGC PRE7233788
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1.97 CAD - $1.97 CAD
$1.97 CAD
$1.97 CAD - $1.97 CAD
$1.97 CAD

Vendu en lots de : 12

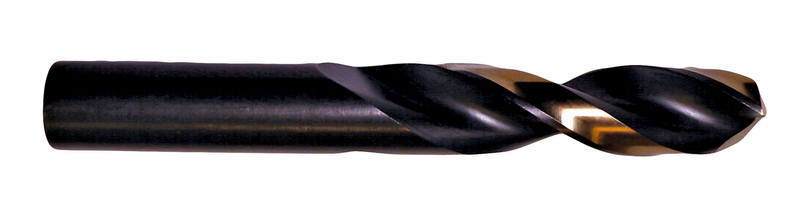

Foret court avec queue droite, diamètre 0,2031" (13/64) avec une longueur totale de 2.1/4" et une longueur de coupe de 1.3/16" selon la norme ANSI avec une pointe fendue à 135°, en HSS avec finition bronze + trempé vapeur pour un perçage 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM13/64
GradeTB/Bronze
Product Number7233788
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.2031"
Cutting Diameter — mm (DC)5.16 mm
Cutting Diameter — Fractional13/64
Overall Length — in (OAL)2.25"
Overall Length — mm (OAL)57.15 mm
Flute Length — in (LCF)1.1875"
Flute Length — mm (LCF)30.16 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2031"
Connection Dia. — mm (DCON)5.16 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233788
EAN7320760717912
File Type Download
312SM13/64 — 3D Model STP Download
312SM13/64 — Line Drawing PDF Download
