312SM7/32
312SM7/32

312SM7/32

UGC PRE7233789
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.30 CAD - $2.30 CAD
$2.30 CAD
$2.30 CAD - $2.30 CAD
$2.30 CAD

Vendu en lots de : 12

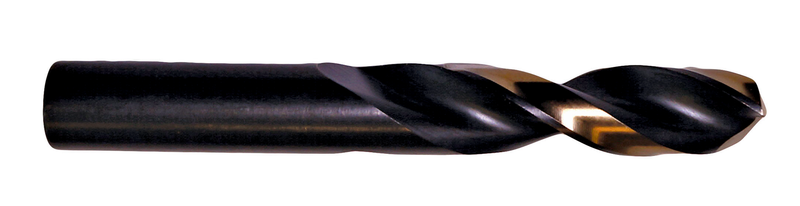

Foret court à queue cylindrique, diamètre 0,2188" (7/32) d'une longueur totale de 2.3/8" et d'une longueur de coupe de 1.1/4" selon la norme ANSI avec une pointe à 135° en croix, HSS avec finition bronze + revenu vapeur pour un perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM7/32
GradeST/Bronze
Product Number7233789
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.2188"
Cutting Diameter — mm (DC)5.56 mm
Cutting Diameter — Fractional7/32
Overall Length — in (OAL)2.375"
Overall Length — mm (OAL)60.33 mm
Flute Length — in (LCF)1.25"
Flute Length — mm (LCF)31.75 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2188"
Connection Dia. — mm (DCON)5.56 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233789
EAN7320760717929
File Type Download
312SM7/32 — 3D Model STP Download
312SM7/32 — Line Drawing PDF Download
