312SM17/64
312SM17/64

312SM17/64

UGC PRE7233792
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2.91 CAD - $2.91 CAD
$2.91 CAD
$2.91 CAD - $2.91 CAD
$2.91 CAD

Vendu en lots de : 12

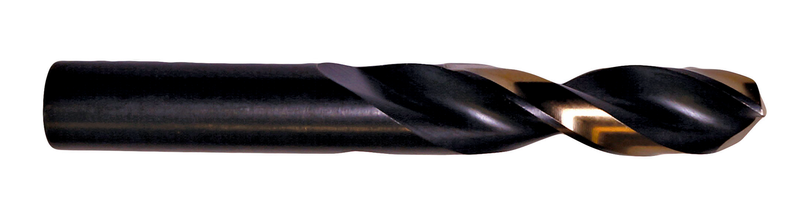

Foret court à queue cylindrique, diamètre 0,2656" (17/64) avec une longueur totale de 2,5/8" et une longueur de coupe de 1,7/16" selon la norme ANSI avec une pointe à 135° auto-centrante, HSS avec finition bronzée (vapeur) pour perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM17/64
GradeST/Bronze
Product Number7233792
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.2656"
Cutting Diameter — mm (DC)6.75 mm
Cutting Diameter — Fractional17/64
Overall Length — in (OAL)2.625"
Overall Length — mm (OAL)66.68 mm
Flute Length — in (LCF)1.4375"
Flute Length — mm (LCF)36.51 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.2656"
Connection Dia. — mm (DCON)6.75 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233792
EAN7320760717950
File Type Download
312SM17/64 — 3D Model STP Download
312SM17/64 — Line Drawing PDF Download
