312SM5/16
312SM5/16

312SM5/16

UGC PRE7233795
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3.64 CAD - $3.64 CAD
$3.64 CAD
$3.64 CAD - $3.64 CAD
$3.64 CAD

Vendu en lots de : 6

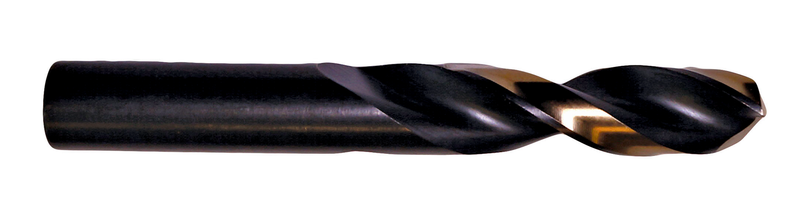

Foret court à queue cylindrique, diamètre 0,3125" (5/16) avec une longueur totale de 2.13/16" et une longueur de coupe de 1.5/8" selon la norme ANSI avec pointe autocentrée 135°, en HSS avec finition bronze + revenu vapeur pour perçage de 2,5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM5/16
GradeBT/Bronze
Product Number7233795
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.3125"
Cutting Diameter — mm (DC)7.94 mm
Cutting Diameter — Fractional16 mai
Overall Length — in (OAL)2.8125"
Overall Length — mm (OAL)71.44 mm
Flute Length — in (LCF)1.625"
Flute Length — mm (LCF)41.28 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.3125"
Connection Dia. — mm (DCON)7.94 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233795
EAN7320760717981
File Type Download
312SM5/16 — 3D Model STP Download
312SM5/16 — Line Drawing PDF Download
