312SM3/8
312SM3/8

312SM3/8

UGC PRE7233799
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$5.51 CAD - $5.51 CAD
$5.51 CAD
$5.51 CAD - $5.51 CAD
$5.51 CAD

Vendu en lots de : 6

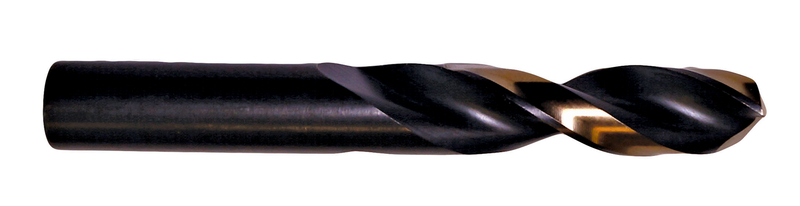

Foret court avec queue cylindrique, diamètre 0,3750" (3/8) avec une longueur totale de 3.1/8" et une longueur de coupe de 1.13/16" selon la norme ANSI avec une pointe fendue à 135°, en acier rapide HSS avec finition trempe à la vapeur + bronze pour un perçage jusqu'à 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM3/8
GradeST/Bronze
Product Number7233799
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.375"
Cutting Diameter — mm (DC)9.53 mm
Cutting Diameter — Fractional3/5
Overall Length — in (OAL)3.125"
Overall Length — mm (OAL)79.38 mm
Flute Length — in (LCF)1.8125"
Flute Length — mm (LCF)46.04 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.375"
Connection Dia. — mm (DCON)9.53 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233799
EAN7320760718025
File Type Download
312SM3/8 — 3D Model STP Download
312SM3/8 — Line Drawing PDF Download
