312SM7/16
312SM7/16

312SM7/16

UGC PRE7233803
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.09 CAD - $7.09 CAD
$7.09 CAD
$7.09 CAD - $7.09 CAD
$7.09 CAD

Vendu en lots de : 6

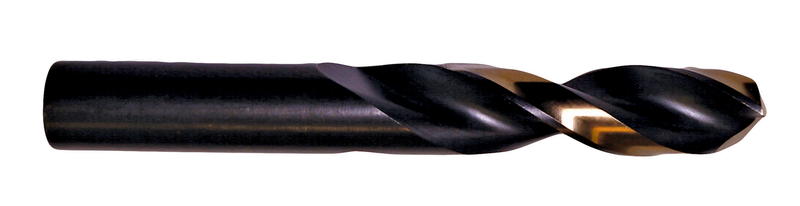

Foret court avec queue cylindrique, diamètre 0,4375" (7/16) avec une longueur totale de 3.7/16" et une longueur de goujure de 2.1/16" selon la norme ANSI avec une pointe fendue à 135°, HSS avec finition trempée à la vapeur + bronze pour le perçage 2.5xD sans débourrage dans l'acier et la fonte

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)312SM7/16
GradeBT/Bronze
Product Number7233803
Product Family312SM
Dimensions
Cutting Diameter — in (DC)0.4375"
Cutting Diameter — mm (DC)11.11 mm
Cutting Diameter — Fractional16/7
Overall Length — in (OAL)3.4375"
Overall Length — mm (OAL)87.31 mm
Flute Length — in (LCF)2.0625"
Flute Length — mm (LCF)52.39 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.4375"
Connection Dia. — mm (DCON)11.11 mm
Drill Point Angle (SIG)135°
Tool Information
ShankQueue cylindrique
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233803
EAN7320760718063
File Type Download
312SM7/16 — 3D Model STP Download
312SM7/16 — Line Drawing PDF Download
