342SDT35/64
342SDT35/64

342SDT35/64

UGC PRE7233819
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.51 CAD - $31.51 CAD
$31.51 CAD
$31.51 CAD - $31.51 CAD
$31.51 CAD

Vendu en lots de : 1

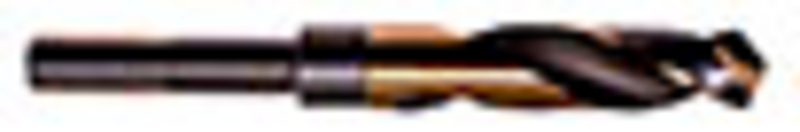

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre de 0,5469" (35/64) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec pointe fendue à 118°, en HSS avec finition bronze + trempé à la vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)342SDT35/64
GradeST/Bronze
Product Number7233819
Product Family342SDT

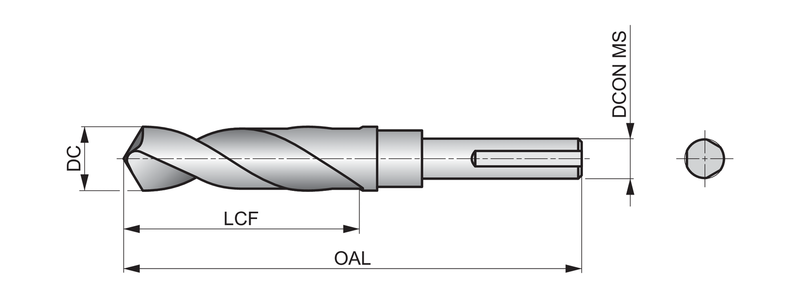

Dimensions
Cutting Diameter — in (DC)0.5469"
Cutting Diameter — mm (DC)13.89 mm
Cutting Diameter — Fractional35/64
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233819
EAN7320760718223
File Type Download
342SDT35/64 — 3D Model STP Download
342SDT35/64 — Line Drawing PDF Download
