342SDT9/16
342SDT9/16

342SDT9/16

UGC PRE7233820
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.53 CAD - $32.53 CAD
$32.53 CAD
$32.53 CAD - $32.53 CAD
$32.53 CAD

Vendu en lots de : 1

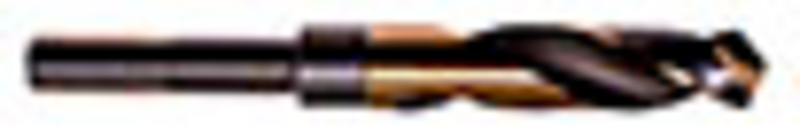

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre 0,5625" (9/16) avec une longueur totale de 6" et une longueur de coupe de 3" selon la norme ANSI avec pointe autocentrante de 118°, en HSS avec finition bronze + revenu vapeur pour perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)342SDT9/16
GradeST/Bronze
Product Number7233820
Product Family342SDT

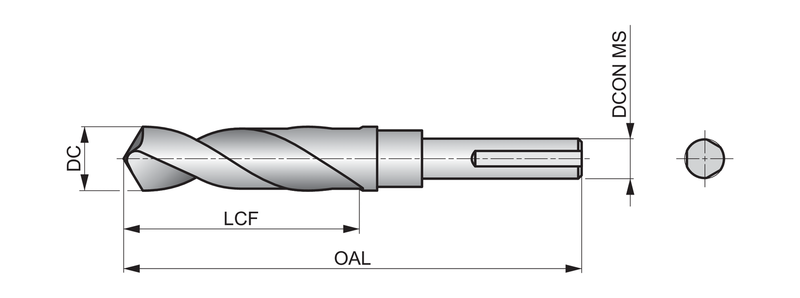

Dimensions
Cutting Diameter — in (DC)0.5625"
Cutting Diameter — mm (DC)14.29 mm
Cutting Diameter — Fractional16/9
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233820
EAN7320760718230
File Type Download
342SDT9/16 — 3D Model STP Download
342SDT9/16 — Line Drawing PDF Download
