342SDT23/32
342SDT23/32

342SDT23/32

UGC PRE7233830
par Precision Twist Drill
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$38.77 CAD - $38.77 CAD
$38.77 CAD
$38.77 CAD - $38.77 CAD
$38.77 CAD

Vendu en lots de : 1

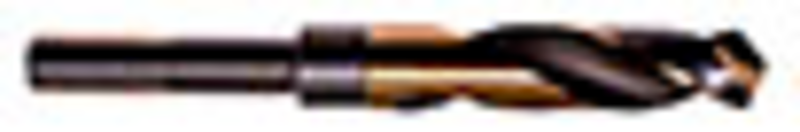

Foret de longueur standard avec queue cylindrique réduite de 1/2", diamètre de 0,7188" (23/32) avec une longueur totale de 6" et une longueur de goujure de 3" selon la norme ANSI avec une pointe fendue de 118°, en HSS avec finition bronze + revenu vapeur pour un perçage 4xD sans débourrage dans l'acier

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)342SDT23/32
GradeST/Bronze
Product Number7233830
Product Family342SDT

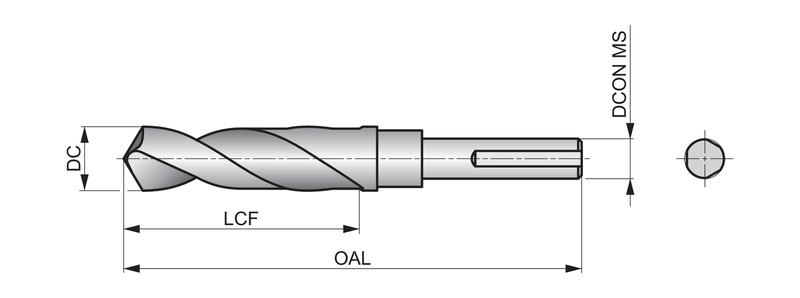

Dimensions
Cutting Diameter — in (DC)0.7188"
Cutting Diameter — mm (DC)18.26 mm
Cutting Diameter — Fractional23/32
Overall Length — in (OAL)6.0"
Overall Length — mm (OAL)152.4 mm
Flute Length — in (LCF)3.0"
Flute Length — mm (LCF)76.2 mm
Length × Diameter Ratio4
Connection Dia. — in (DCON)0.5"
Connection Dia. — mm (DCON)12.7 mm
Drill Point Angle (SIG)118°
Tool Information
ShankQueue cylindrique réduite
Direction of ToolD'accord
StandardANSI
Reference Numbers
EDP Number47233830
EAN7320760718339
File Type Download
342SDT23/32 — 3D Model STP Download
342SDT23/32 — Line Drawing PDF Download
