RCMT 1204MOE-RM3:T7325
RCMT 1204MOE-RM3:T7325

RCMT 1204MOE-RM3:T7325

UGC DOR7248714
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.36 CAD - $14.36 CAD
$14.36 CAD
$14.36 CAD - $14.36 CAD
$14.36 CAD

Vendu en lots de : 10

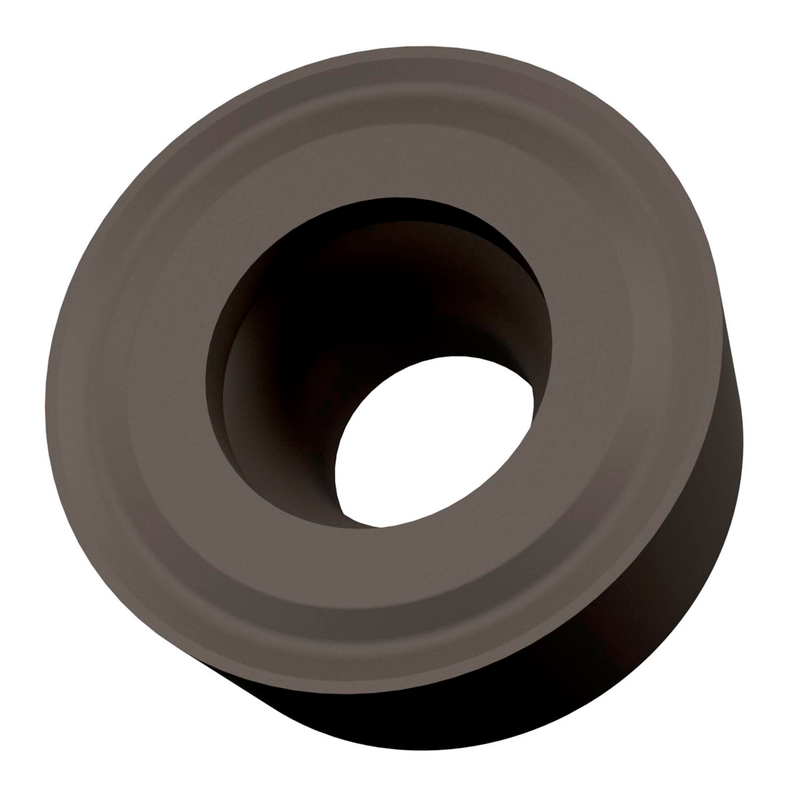

Plaquette de tournage positive simple face, ronde avec un dégagement de 7°, diamètre de 12 mm, épaisseur de 4,76 mm, précision d'indexage selon la classe de tolérance ISO-M, brise-copeaux RM3 avec arêtes de coupe arrondies, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD, pour l'usinage fin à lourd

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RCMT 1204MOE-RM3:T7325
GradeT7325
Chipbreaker (CBMD)RM3
Product Number7248714
Product FamilyCCRÉ
Insert Geometry
Insert DesignCRTM
Insert Shape Code (SC)R - arrondi
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7248714
EAN3603603221185
File Type Download

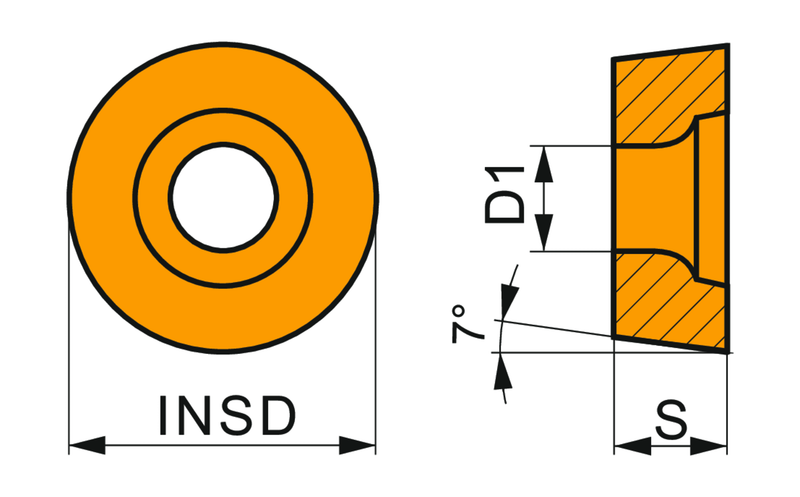

RCMT 1204MOE-RM3:T7325 — Line Drawing PDF Download
