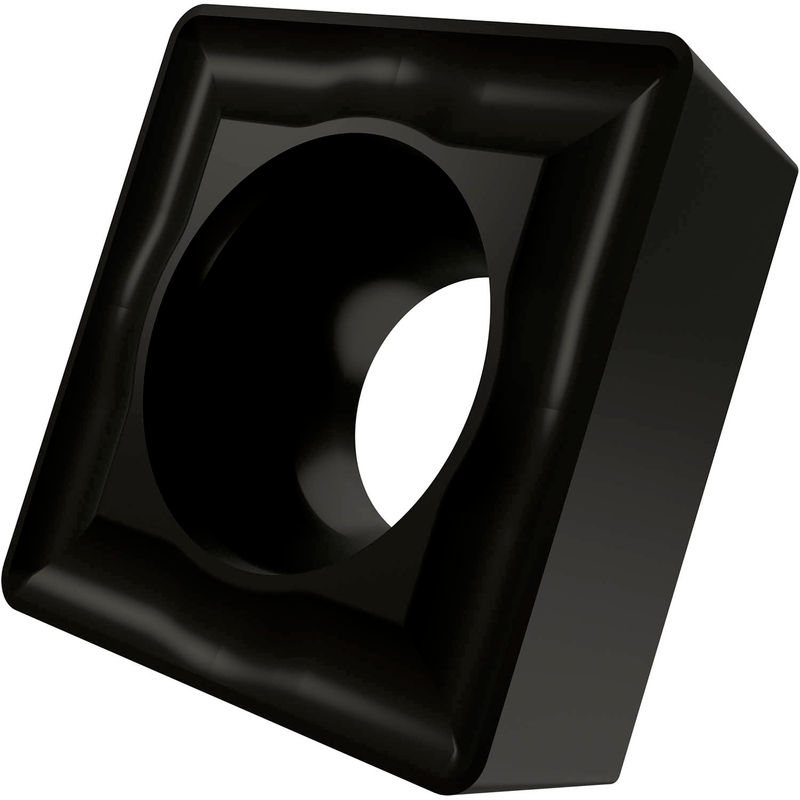

SCMT 432-RM3:T9335
SCMT 432-RM3:T9335

SCMT 432-RM3:T9335

UGC DOR7248726
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.97 CAD - $18.97 CAD
$18.97 CAD
$18.97 CAD - $18.97 CAD
$18.97 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple face, carrée avec un angle de dépouille de 7°, diamètre du cercle inscrit de 1/2", épaisseur de 3/16", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO-M, brise-copeaux RM3, en nuance T9335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P20-P45, pour l'usinage fin à lourd des aciers

For more information about this product, click here

Identification
Ordering Code (ANSI)SCMT 432-RM3:T9335
Product Name (ISO)SCMT 120408E-RM3:T9335
GradeT9335
Chipbreaker (CBMD)RM3
Product Number7248726
Product FamilySCMT
Insert Geometry
Insert DesignSCMT
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.157"
Depth of Cut Max — mm (APMX)4.0 mm
Tool Information
Reference Numbers
EDP Number7248726
EAN3603603221307
File Type Download
SCMT 432-RM3:T9335 — Line Drawing PDF Download
