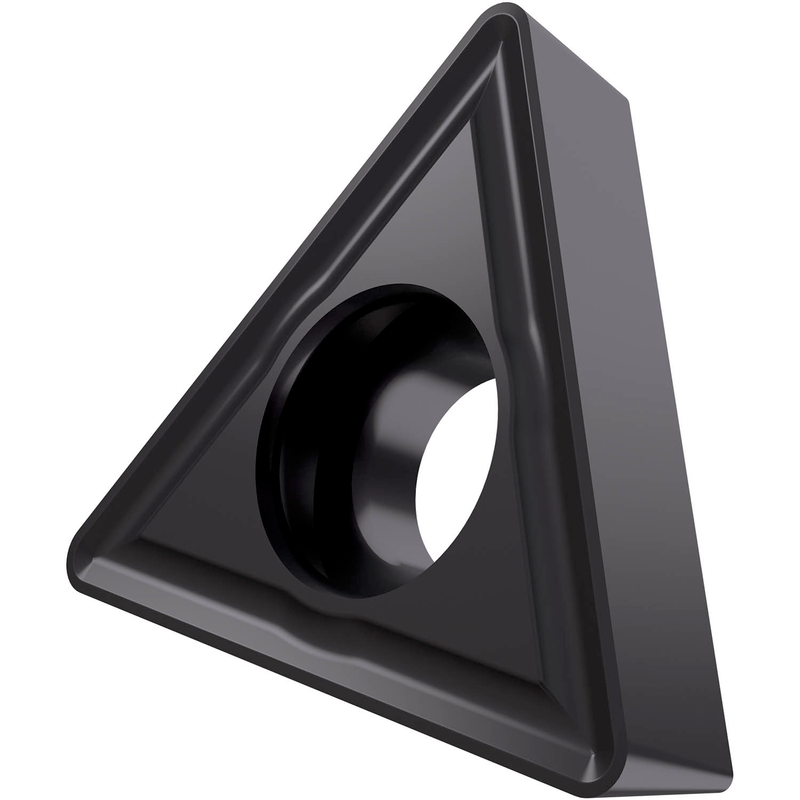

TCMT 32.52-RM3:T6310
TCMT 32.52-RM3:T6310

TCMT 32.52-RM3:T6310

UGC DOR7248735
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.19 CAD - $14.19 CAD
$14.19 CAD
$14.19 CAD - $14.19 CAD
$14.19 CAD

Vendu en lots de : 10

Plaquette de tournage positive simple-face, triangulaire avec dépouille de 7°, diamètre du cercle inscrit de 3/8", épaisseur de 5/32", rayon de bec de 1/32" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux RM3, en nuance T6310, un carbure WC-Co à grains extra-fins revêtu PVD, dans les plages ISO P01 - P15 et K05 - K20, pour l'usinage fin à lourd des aciers et des fontes

For more information about this product, click here

Identification
Ordering Code (ANSI)TCMT 32.52-RM3:T6310
Product Name (ISO)TCMT 16T308E-RM3:T6310
GradeT6310
Chipbreaker (CBMD)RM3
Product Number7248735
Product FamilyTCMT
Insert Geometry
Insert DesignTCMT
Insert Shape Code (SC)T - angulaire à 60° inclus
Insert Geometry
Inscribed Circle Dia. — in (IC)0.375"
Inscribed Circle Dia. — mm (IC)9.53 mm
Insert Thickness — in (S)0.156"
Insert Thickness — mm (S)3.97 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.118"
Depth of Cut Max — mm (APMX)3.0 mm
Tool Information
Reference Numbers
EDP Number7248735
EAN3603603221390
File Type Download
TCMT 32.52-RM3:T6310 — Line Drawing PDF Download
