25E5R050A25-SBN10-C
25E5R050A25-SBN10-C
25E5R050A25-SBN10-C

25E5R050A25-SBN10-C

UGC DOR7253577
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$396.00 CAD - $396.00 CAD
$396.00 CAD
$396.00 CAD - $396.00 CAD
$396.00 CAD

Vendu en lots de : 1

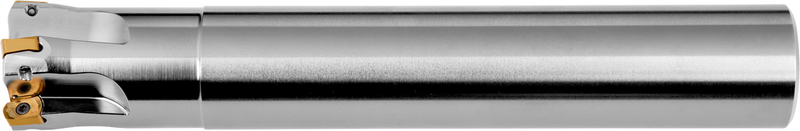

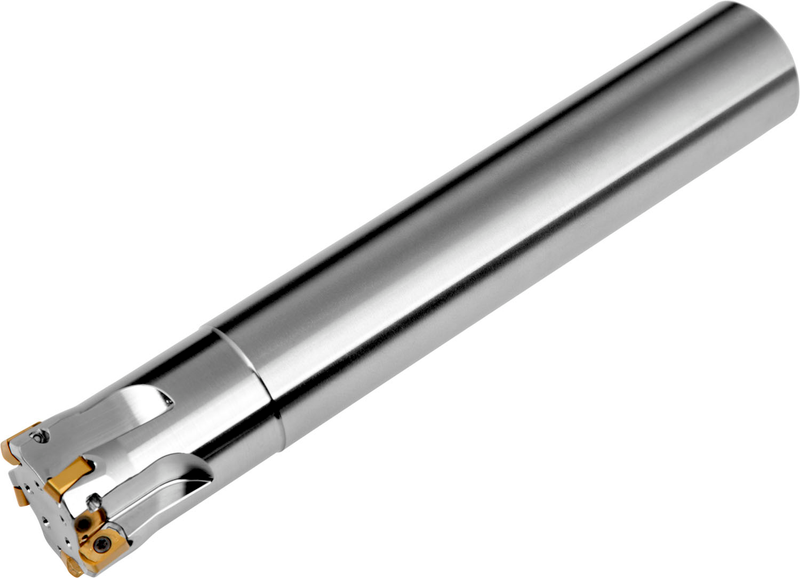

Fraise à grande avance avec géométrie positive/négative qui utilise 5 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 25 mm avec un angle d'attaque de 20° et un manche cylindrique de 25 mm selon la norme DIN 1835A, longueur fonctionnelle de 50 mm et longueur totale de 140 mm, arrosage central pour le surfaçage, le fraisage en copie, le fraisage d'épaulements peu profonds, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)25E5R050A25-SBN10-C
Product Number7253577
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

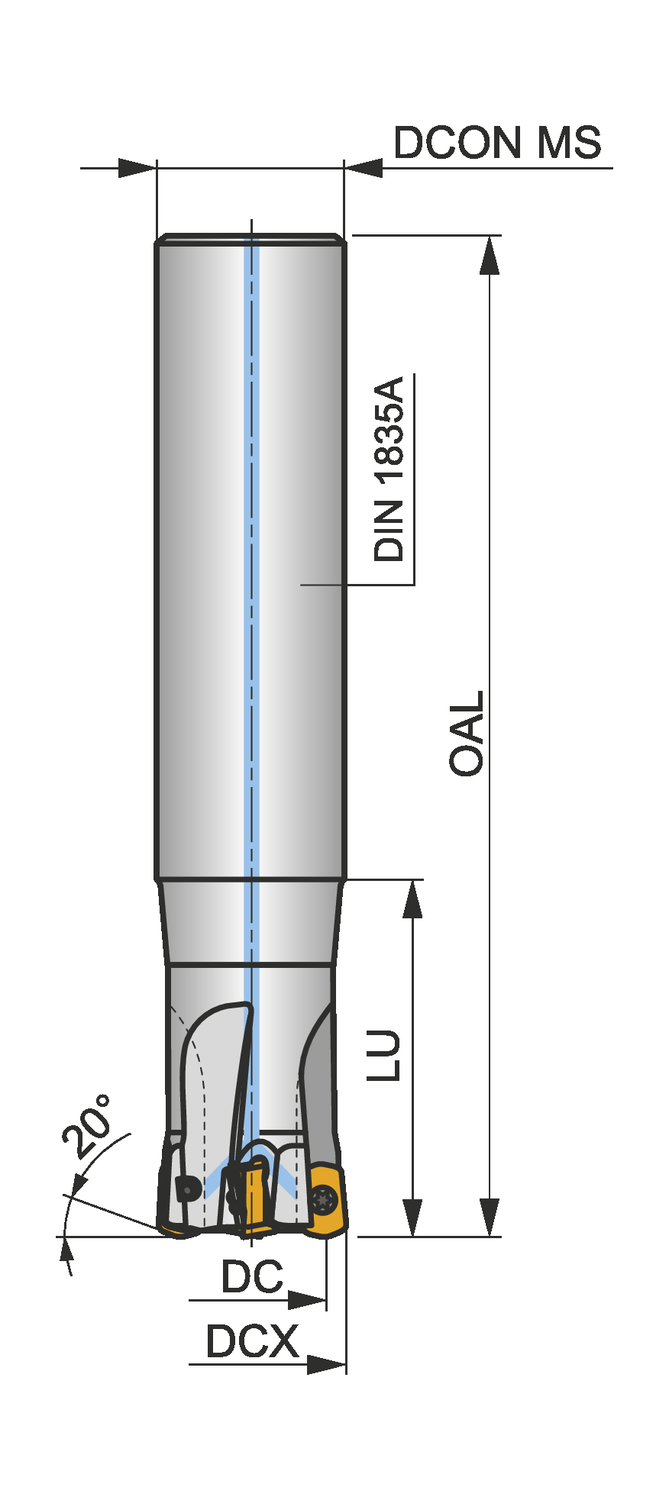

Dimensions
Cutting Diameter — in (DC)0.724"
Cutting Diameter — mm (DC)18.4 mm
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Usable Length — mm (LU)50.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)5
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7253577
EAN3603603226012
File Type Download
25E5R050A25-SBN10-C — 3D Model STP Download
25E5R050A25-SBN10-C — 2D Model DXF Download
25E5R050A25-SBN10-C — Line Drawing PDF Download
