20E3R040A20-SBN10-C
20E3R040A20-SBN10-C
20E3R040A20-SBN10-C

20E3R040A20-SBN10-C

UGC DOR7259578
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$353.00 CAD - $353.00 CAD
$353.00 CAD
$353.00 CAD - $353.00 CAD
$353.00 CAD

Vendu en lots de : 1

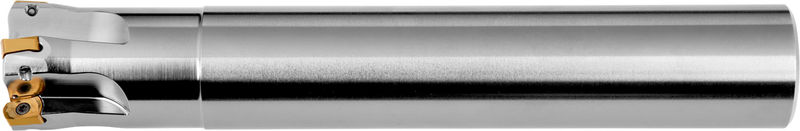

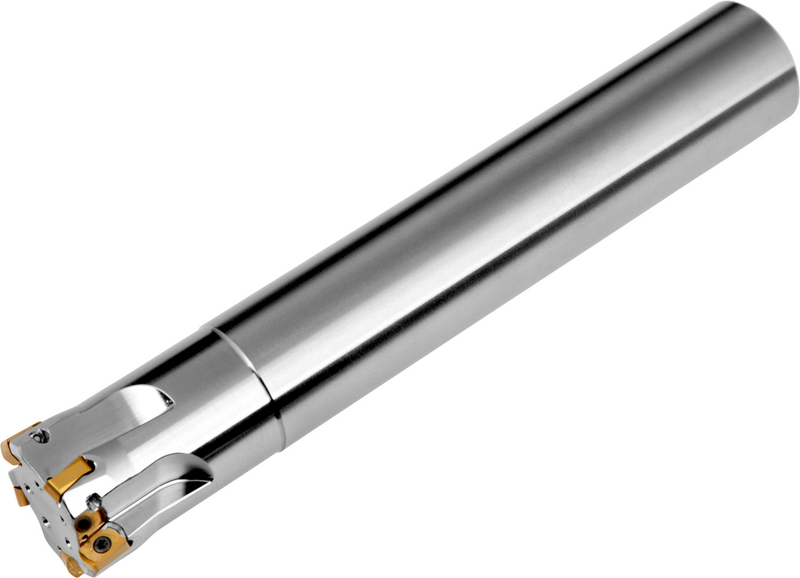

Fraise à avance élevée avec géométrie positive/négative qui utilise 3 plaquettes BNGX 10T3... ou ANHX 10T3..., diamètre de coupe 20 mm avec angle d'approche de 20° et queue cylindrique de 20 mm selon DIN 1835A, longueur fonctionnelle de 40 mm et longueur totale de 130 mm, arrosage central pour le surfaçage, le fraisage de copiage, le fraisage d'épaulement peu profond, l'usinage en ramping, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressive avec une profondeur de coupe maximale de 1,0 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)20E3R040A20-SBN10-C
Product Number7259578
Product FamilySBN10
Insert Geometry
Depth of Cut Max — mm (APMX)1.0 mm

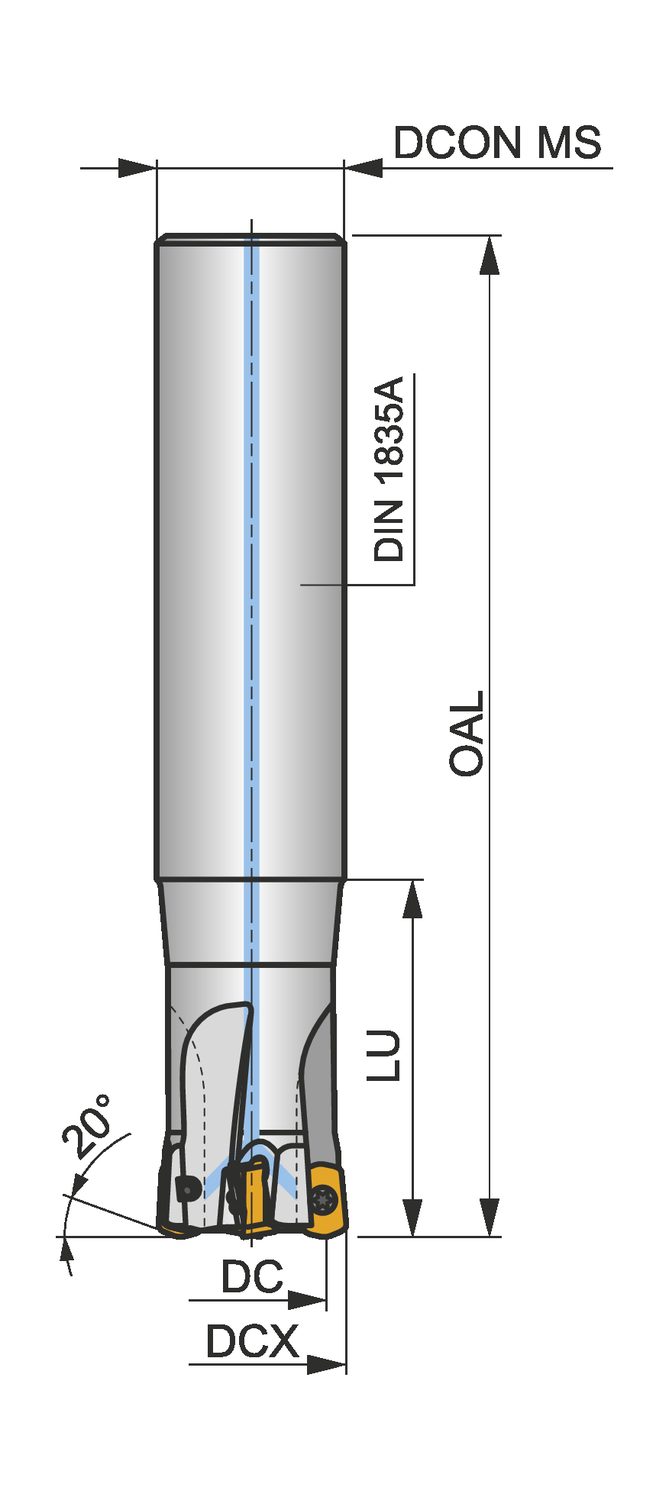

Dimensions
Cutting Diameter — in (DC)0.528"
Cutting Diameter — mm (DC)13.4 mm
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Usable Length — mm (LU)40.0 mm
Connection Dia. — in (DCON)0.787"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSBN10
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7259578
EAN3603603229020
File Type Download
20E3R040A20-SBN10-C — 3D Model STP Download
20E3R040A20-SBN10-C — 2D Model DXF Download
20E3R040A20-SBN10-C — Line Drawing PDF Download
