250A04R-IS45OE06Z-C
250A04R-IS45OE06Z-C
250A04R-IS45OE06Z-C

250A04R-IS45OE06Z-C

UGC DOR7270034
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$827.00 CAD - $827.00 CAD
$827.00 CAD
$827.00 CAD - $827.00 CAD
$827.00 CAD

Vendu en lots de : 1

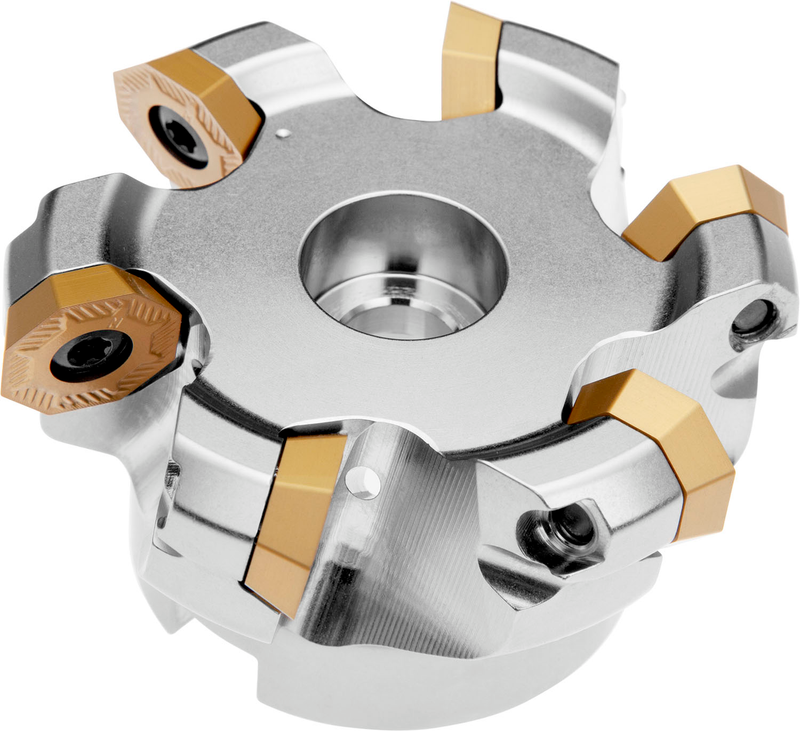

Fraise à surfacer avec géométrie double positive utilisant 4 plaquettes simple face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 2,500 à 2,902'' maximum, avec un angle d'attaque de 43° et un alésage de raccordement de 0,750'' selon DIN 8030-A, longueur de dépassement de 1,575'', arrosage interne pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 0,130 (0,390)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250A04R-IS45OE06Z-C
Product Number7270034
Product FamilyISOE06Z

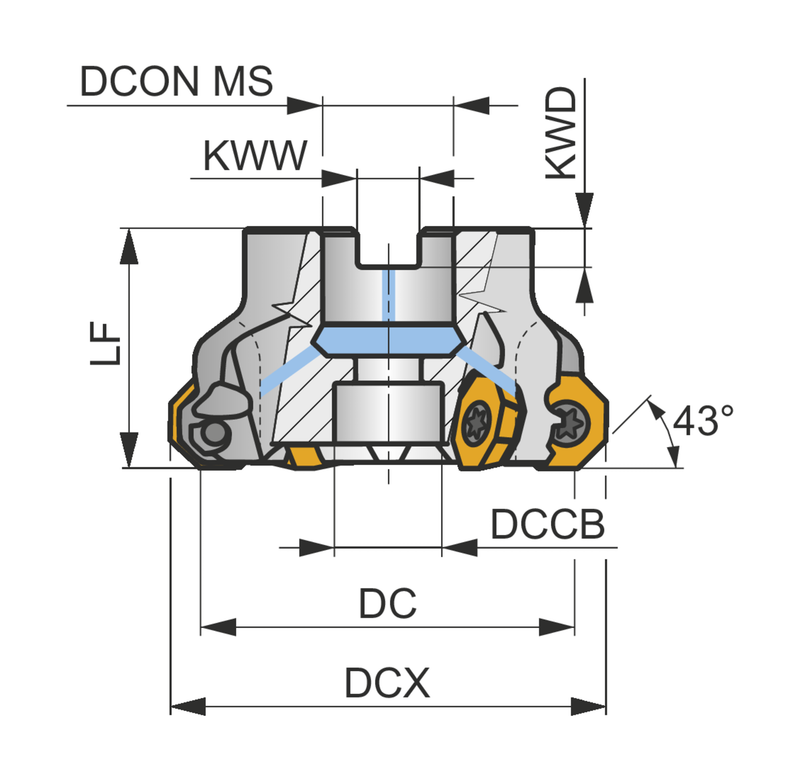

Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Functional Length — in (LF)1.575"
Functional Length — mm (LF)40.01 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSOE06Z
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7270034
EAN3603603235014
File Type Download
250A04R-IS45OE06Z-C — 3D Model STP Download
250A04R-IS45OE06Z-C — 2D Model DXF Download
250A04R-IS45OE06Z-C — Line Drawing PDF Download
