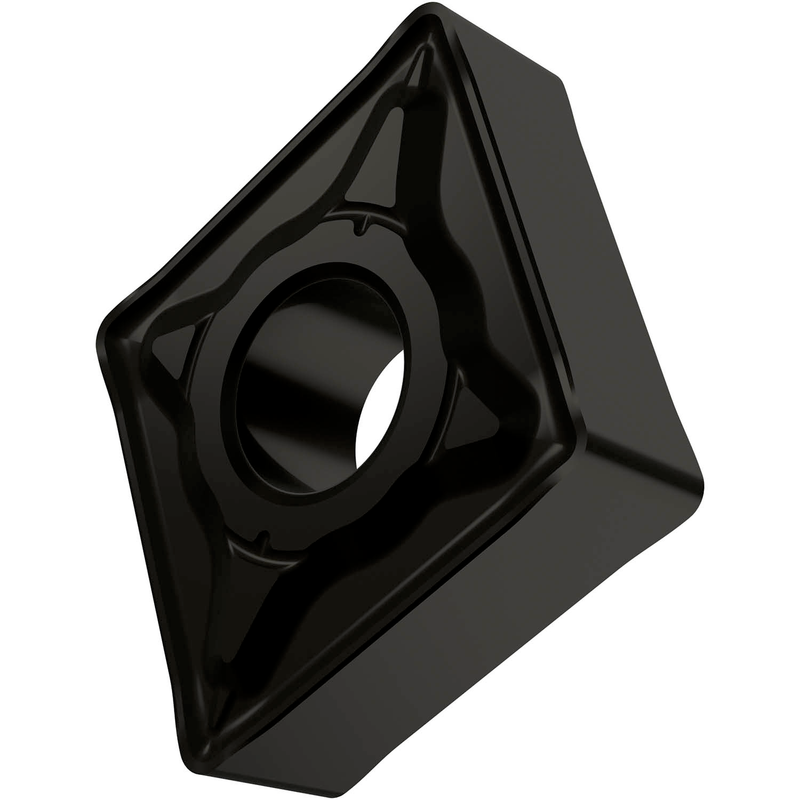

CNMG 644-NRM:T7335
CNMG 644-NRM:T7335

CNMG 644-NRM:T7335

UGC DOR7271034
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.26 CAD - $30.26 CAD
$30.26 CAD
$30.26 CAD - $30.26 CAD
$30.26 CAD

Vendu en lots de : 10

Plaquette négative double-face, rhomboïde 80° avec diamètre de cercle inscrit de 3/4", 1/4" d'épaisseur, rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage moyen à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 644-NRM:T7335
Product Name (ISO)CNMG 190616-NRM:T7335
GradeT7335
Chipbreaker (CBMD)NRM
Product Number7271034
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, rhomboïde
Insert Geometry
Inscribed Circle Dia. — in (IC)0.75"
Inscribed Circle Dia. — mm (IC)19.05 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7271034
EAN3603603237032
File Type Download
CNMG 644-NRM:T7335 — Line Drawing PDF Download
