CNMG 432-NRM:T7325
CNMG 432-NRM:T7325

CNMG 432-NRM:T7325

UGC DOR7273473
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.00 CAD - $14.00 CAD
$14.00 CAD
$14.00 CAD - $14.00 CAD
$14.00 CAD

Vendu en lots de : 10

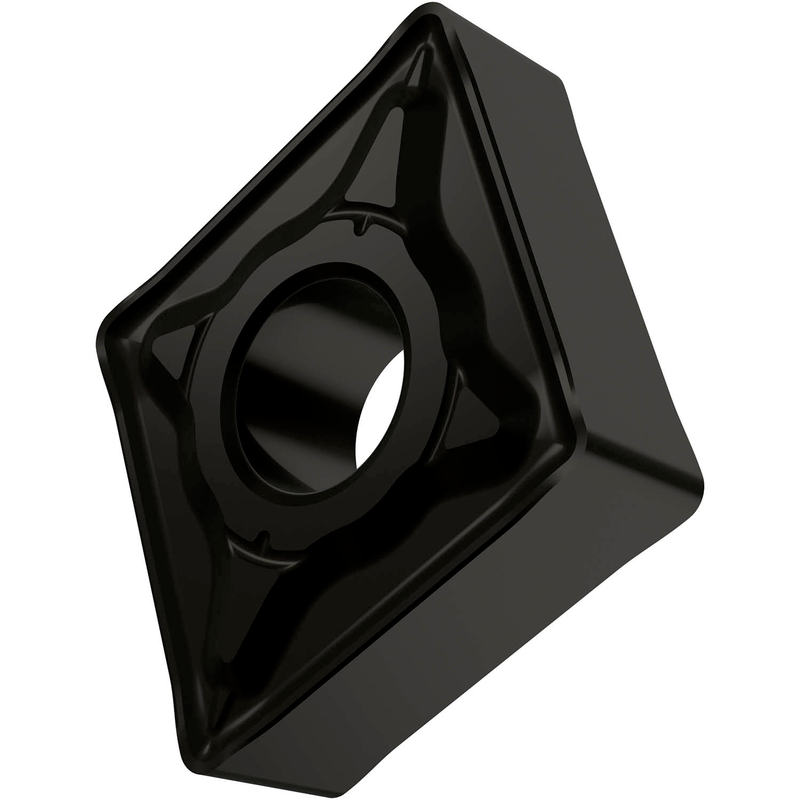

Plaquette de tournage négative double face, rhomboïde à 80° avec un cercle inscrit de 1/2" de diamètre, 3/16" d'épaisseur, un rayon de bec de 1/32" et une précision d'indexage selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10 - M25 et S10 - S25, pour l'usinage moyen à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 432-NRM:T7325
Product Name (ISO)CNMG 120408-NRM:T7325
GradeT7325
Chipbreaker (CBMD)NRM
Product Number7273473
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle de 80° inclus, losangique
Insert Geometry
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.187"
Insert Thickness — mm (S)4.76 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.276"
Depth of Cut Max — mm (APMX)7.0 mm
Tool Information
Reference Numbers
EDP Number7273473
EAN3603603241022
File Type Download
CNMG 432-NRM:T7325 — Line Drawing PDF Download
