SNMG 544-NRM:T7325
SNMG 544-NRM:T7325

SNMG 544-NRM:T7325

UGC DOR7273536
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.61 CAD - $21.61 CAD
$21.61 CAD
$21.61 CAD - $21.61 CAD
$21.61 CAD

Vendu en lots de : 10

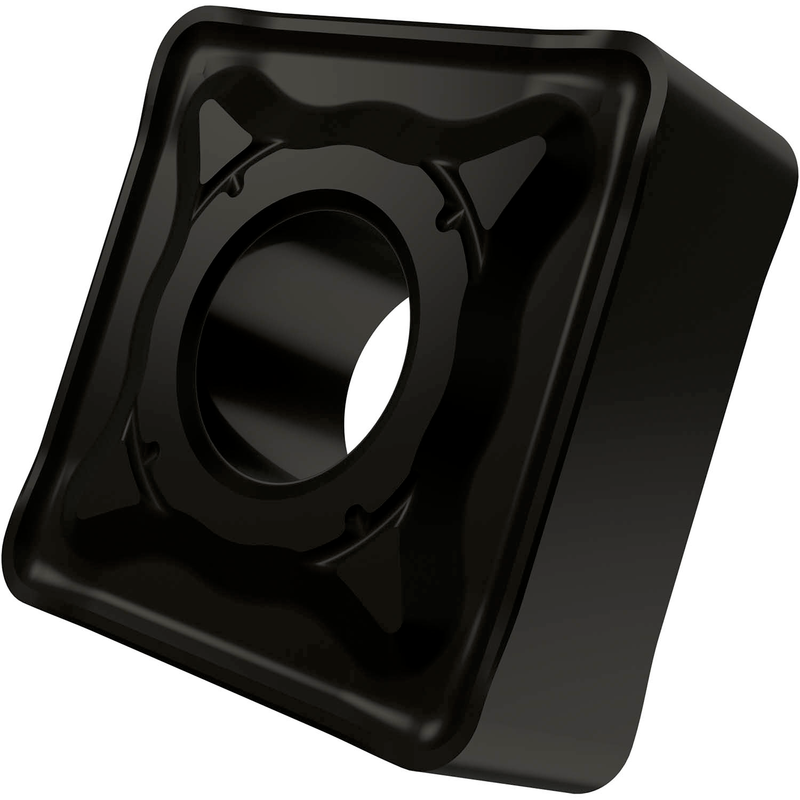

Plaquette négative double face, carrée avec diamètre du cercle inscrit de 5/8", 1/4" d'épaisseur, rayon de bec de 1/16" et précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M10 - M25 et S10 - S25, pour l'usinage moyen à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMG 544-NRM:T7325
Product Name (ISO)SNMG 150616-NRM:T7325
GradeT7325
Chipbreaker (CBMD)NRM
Product Number7273536
Product FamilySNMG

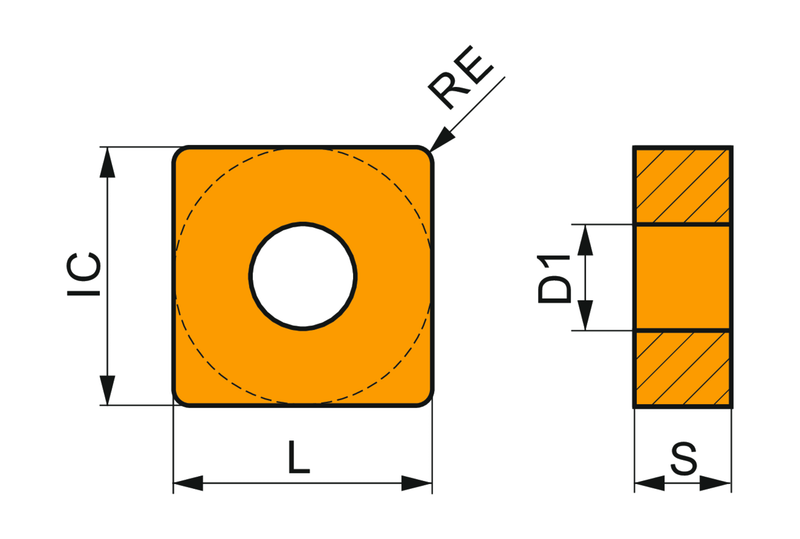

Insert Geometry
Insert DesignSNMG
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)0.625"
Inscribed Circle Dia. — mm (IC)15.88 mm
Insert Thickness — in (S)0.25"
Insert Thickness — mm (S)6.35 mm
Corner Radius — in (RE)0.063"
Corner Radius — mm (RE)1.6 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number7273536
EAN3603603241350
File Type Download
SNMG 544-NRM:T7325 — Line Drawing PDF Download
