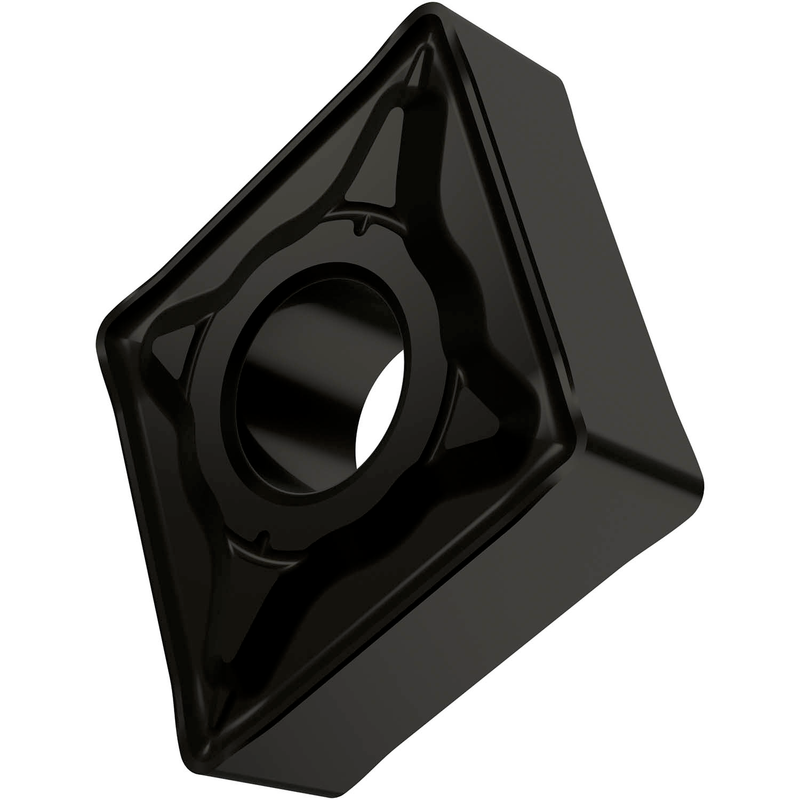

CNMG 866-NRM:T7335
CNMG 866-NRM:T7335

CNMG 866-NRM:T7335

UGC DOR7273543
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$61.93 CAD - $61.93 CAD
$61.93 CAD
$61.93 CAD - $61.93 CAD
$61.93 CAD

Vendu en lots de : 5

Plaquette négative double-face, rhomboïde à 80° avec un diamètre de cercle inscrit de 1", épaisseur de 3/8", rayon de bec de 3/32" et une précision de positionnement conforme à la classe de tolérance ISO M, brise-copeaux NRM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage moyen à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)CNMG 866-NRM:T7335
Product Name (ISO)CNMG 250924-NRM:T7335
GradeT7335
Chipbreaker (CBMD)NRM
Product Number7273543
Product FamilyCNMG
Insert Geometry
Insert DesignCNMG
Insert Shape Code (SC)C - angle inclus rhombique de 80°
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.591"
Depth of Cut Max — mm (APMX)15.0 mm
Tool Information
Reference Numbers
EDP Number7273543
EAN3603603241428
File Type Download
CNMG 866-NRM:T7335 — Line Drawing PDF Download
