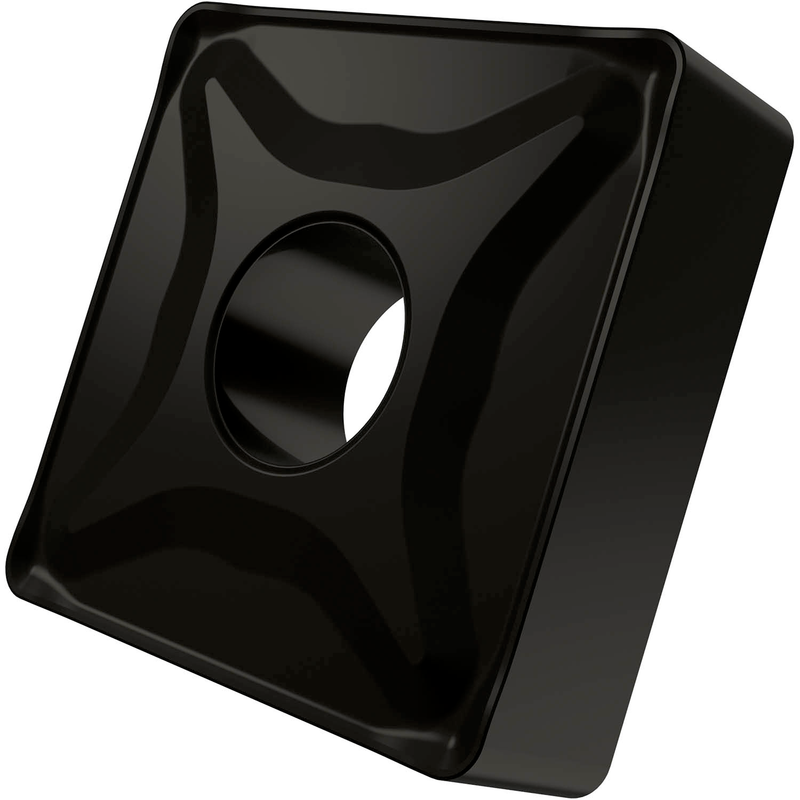

SNMM 866-NRM:T7335
SNMM 866-NRM:T7335

SNMM 866-NRM:T7335

UGC DOR7273558
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$60.00 CAD - $60.00 CAD
$60.00 CAD
$60.00 CAD - $60.00 CAD
$60.00 CAD

Vendu en lots de : 10

Plaquette de tournage négative double face, carrée avec un diamètre de cercle inscrit de 1", une épaisseur de 3/8", un rayon de bec de 3/32" et une précision de positionnement selon la classe de tolérance ISO M, brise-copeaux NRM, en nuance T7335, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans les plages ISO M20 - M40 et S15 - S25, pour l'usinage moyen à lourd des aciers inoxydables et des superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI)SNMM 866-NRM:T7335
Product Name (ISO)SNMM 250924-NRM:T7335
GradeT7335
Chipbreaker (CBMD)MRN
Product Number7273558
Product FamilySNMM
Insert Geometry
Insert DesignSNMM
Insert Shape Code (SC)C - carré
Insert Geometry
Inscribed Circle Dia. — in (IC)1.0"
Inscribed Circle Dia. — mm (IC)25.4 mm
Insert Thickness — in (S)0.375"
Insert Thickness — mm (S)9.53 mm
Corner Radius — in (RE)0.094"
Corner Radius — mm (RE)2.4 mm
Depth of Cut Max — in (APMX)0.63"
Depth of Cut Max — mm (APMX)16.0 mm
Tool Information
Reference Numbers
EDP Number7273558
EAN3603603241572
File Type Download
SNMM 866-NRM:T7335 — Line Drawing PDF Download
