600A09R-IS45OE06Z-C
600A09R-IS45OE06Z-C
600A09R-IS45OE06Z-C

600A09R-IS45OE06Z-C

UGC DOR7275033
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,991.00 CAD - $1,991.00 CAD
$1,991.00 CAD
$1,991.00 CAD - $1,991.00 CAD
$1,991.00 CAD

Vendu en lots de : 1

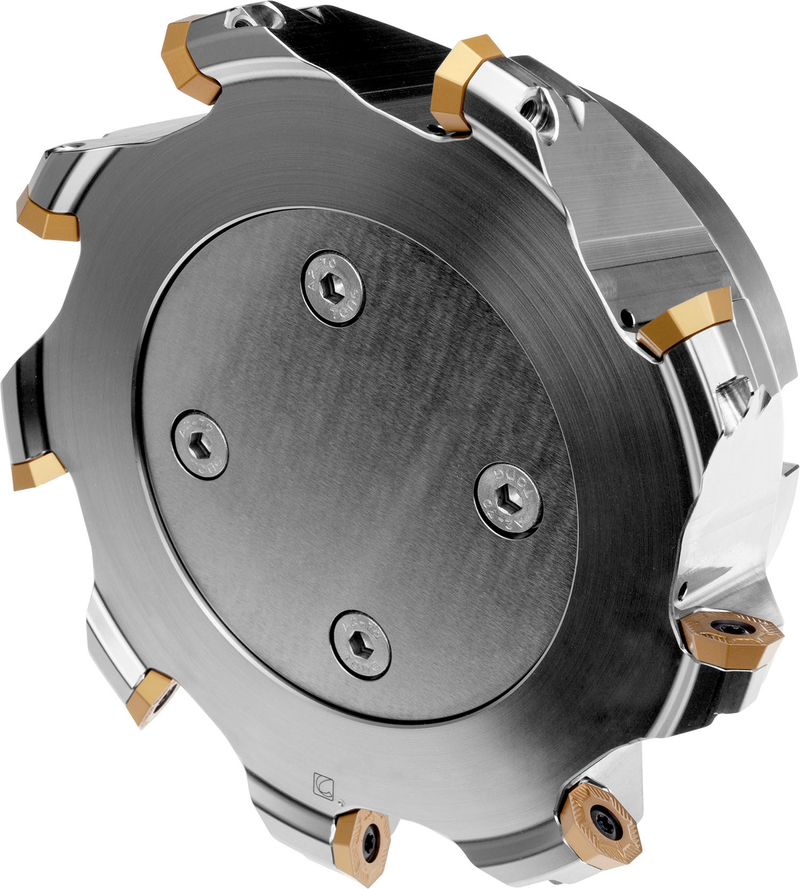

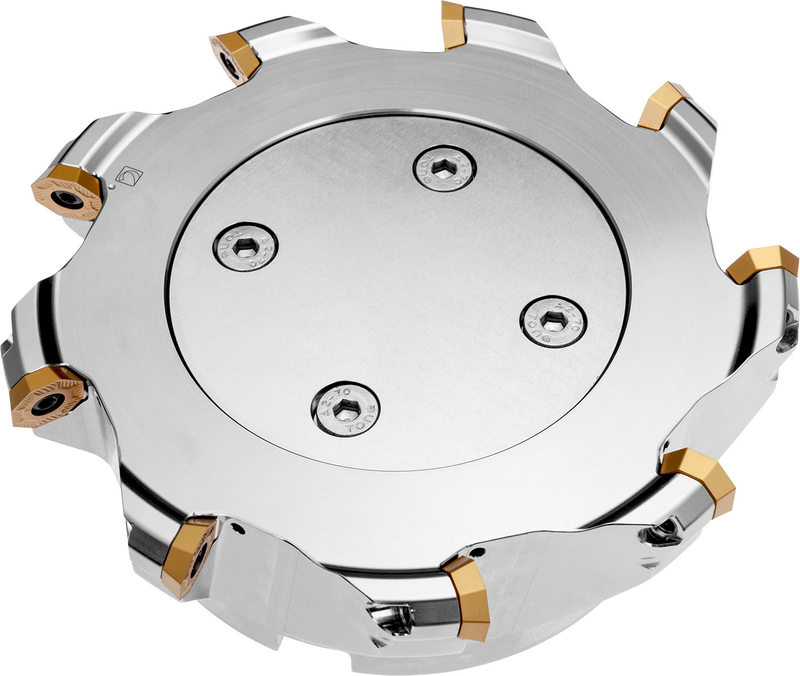

Fraise à surfacer avec une géométrie double positive qui utilise 9 plaquettes simple face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 6 000 à 6 402'' maximum avec un angle d'attaque de 43° et un alésage de connexion de 2 000'' selon DIN 8030-A, longueur de dépassement de 2 480'', arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 0,130 (0,390)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)600A09R-IS45OE06Z-C
Product Number7275033
Product FamilyISOE06Z

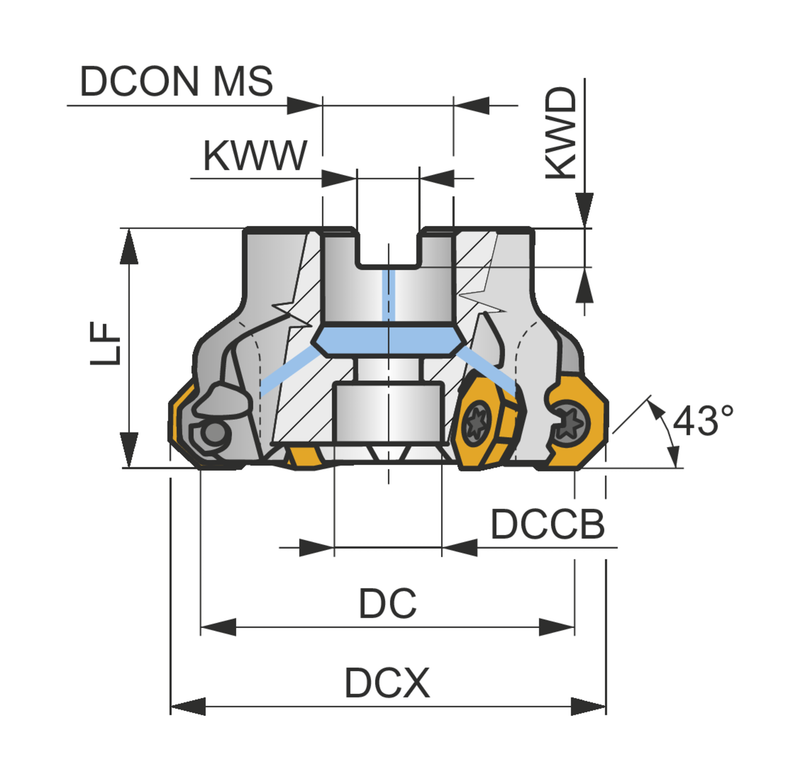

Dimensions
Cutting Diameter — in (DC)6.0"
Cutting Diameter — mm (DC)152.4 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.0"
Connection Dia. — mm (DCON)50.8 mm
Number of Flutes (NOF)9
Tool Information
Tool DesignSOE06Z
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7275033
EAN3603603239081
File Type Download
600A09R-IS45OE06Z-C — 3D Model STP Download
600A09R-IS45OE06Z-C — 2D Model DXF Download
600A09R-IS45OE06Z-C — Line Drawing PDF Download
