600A12R-IS45OE06Z-C
600A12R-IS45OE06Z-C
600A12R-IS45OE06Z-C

600A12R-IS45OE06Z-C

UGC DOR7275034
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,342.00 CAD - $2,342.00 CAD
$2,342.00 CAD
$2,342.00 CAD - $2,342.00 CAD
$2,342.00 CAD

Vendu en lots de : 1

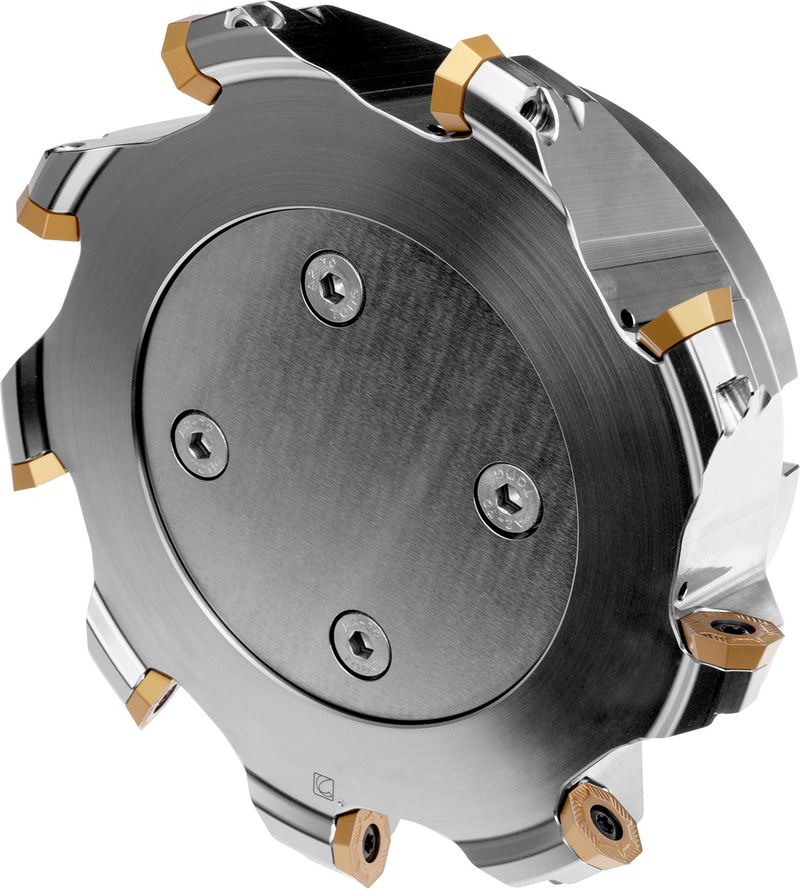

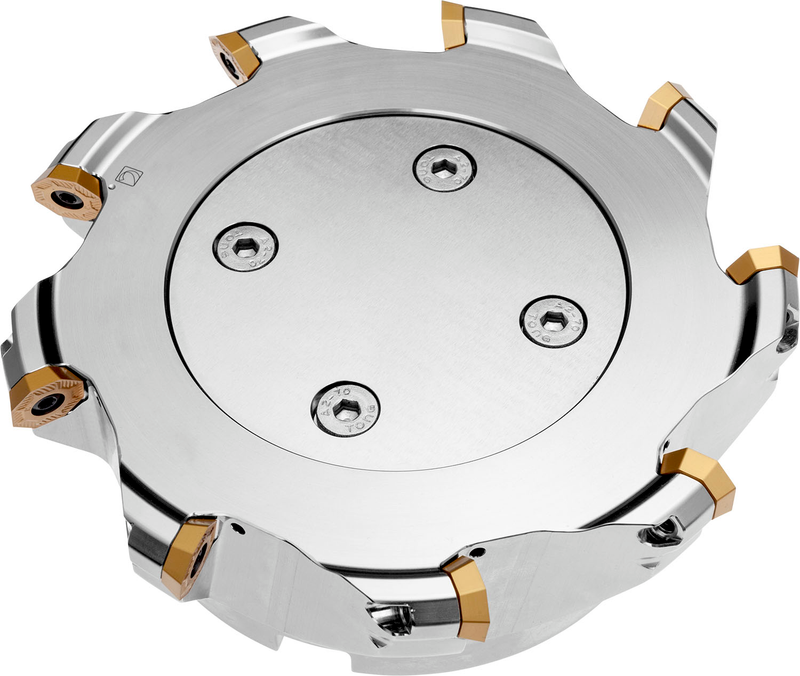

Fraise à surfacer avec géométrie double positive utilisant 12 plaquettes simple-face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 6.000 à 6.390'' maximum avec un angle d'attaque de 43° et un alésage de connexion de 2.000'' selon DIN 8030-A, une longueur de dépassement de 2.480'', arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 0.130 (0.390)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)600A12R-IS45OE06Z-C
Product Number7275034
Product FamilyISOE06Z

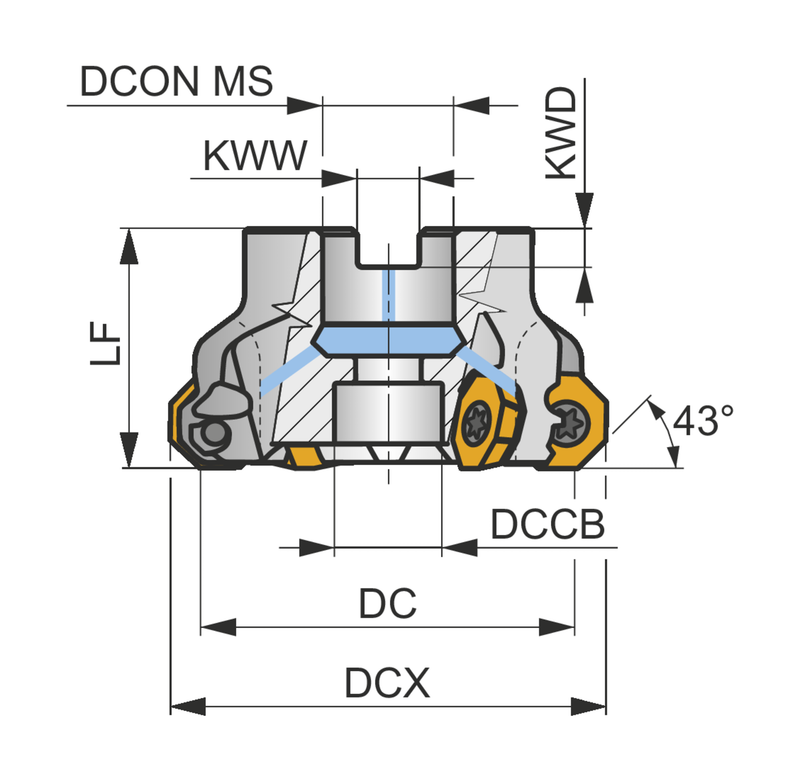

Dimensions
Cutting Diameter — in (DC)6.0"
Cutting Diameter — mm (DC)152.4 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.0"
Connection Dia. — mm (DCON)50.8 mm
Number of Flutes (NOF)12
Tool Information
Tool DesignSOE06Z
ShankFraise à surfacer-dresser DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7275034
EAN3603603239098
File Type Download
600A12R-IS45OE06Z-C — 3D Model STP Download
600A12R-IS45OE06Z-C — 2D Model DXF Download
600A12R-IS45OE06Z-C — Line Drawing PDF Download
