800C11R-IS45OE06Z-C
800C11R-IS45OE06Z-C
800C11R-IS45OE06Z-C

800C11R-IS45OE06Z-C

UGC DOR7275035
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,347.00 CAD - $2,347.00 CAD
$2,347.00 CAD
$2,347.00 CAD - $2,347.00 CAD
$2,347.00 CAD

Vendu en lots de : 1

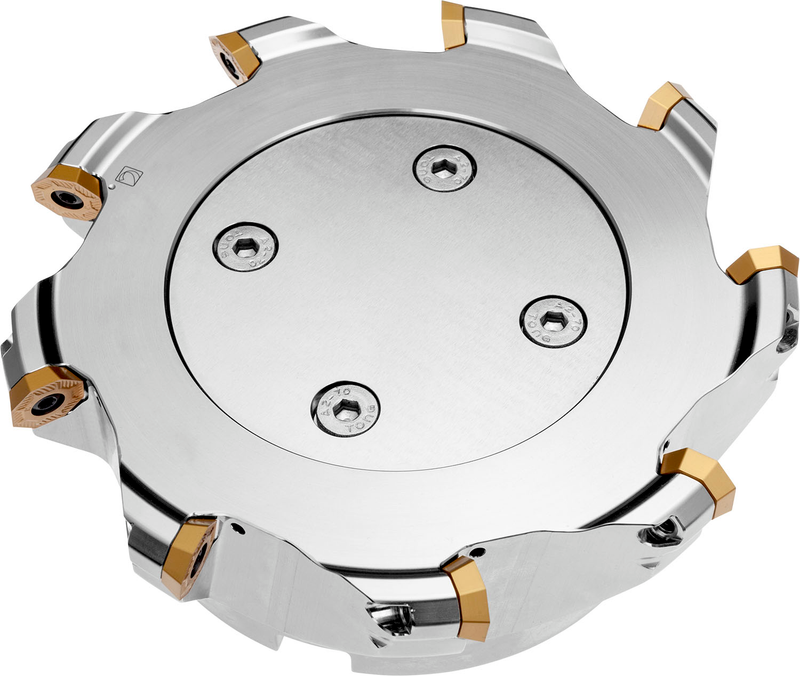

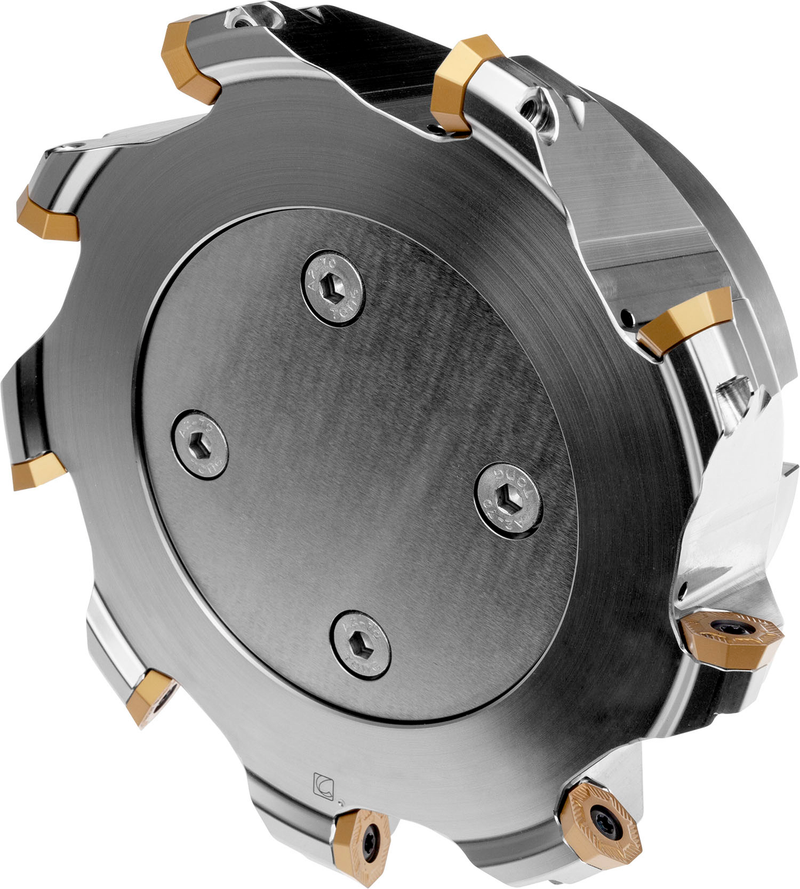

Fraise à surfacer à géométrie double positive qui utilise 11 plaquettes simple face OEHT 0604AE.., REHT 1604M0.. ou XEHT 0604AE.., diamètre de coupe de 8.000 à 8.402'' maximum avec un angle d'attaque de 43° et un alésage de connexion de 2.500'' selon DIN 8030-C, une longueur de dépassement de 2.480'', arrosage central pour le surfaçage et le chanfreinage avec une profondeur de coupe maximale de 0.130 (0.390)''

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)800C11R-IS45OE06Z-C
Product Number7275035
Product FamilyISOE06Z

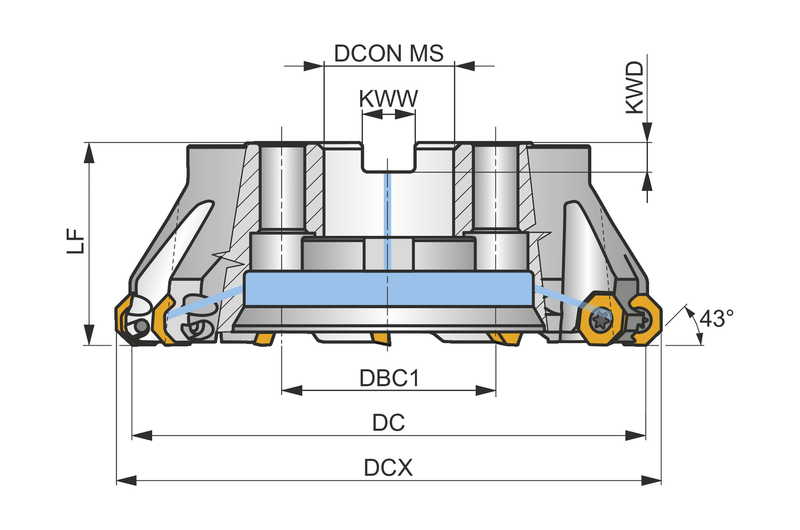

Dimensions
Cutting Diameter — in (DC)8.0"
Cutting Diameter — mm (DC)203.2 mm
Functional Length — in (LF)2.48"
Functional Length — mm (LF)62.99 mm
Connection Dia. — in (DCON)2.5"
Connection Dia. — mm (DCON)63.5 mm
Number of Flutes (NOF)11
Tool Information
Tool DesignSOE06Z
ShankFraise-scie DIN 8030 C
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7275035
EAN3603603239104
File Type Download
800C11R-IS45OE06Z-C — 3D Model STP Download
800C11R-IS45OE06Z-C — 2D Model DXF Download
800C11R-IS45OE06Z-C — Line Drawing PDF Download
