075A2R125W075-ISTN10-C
075A2R125W075-ISTN10-C
075A2R125W075-ISTN10-C

075A2R125W075-ISTN10-C

UGC DOR7276925
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$337.00 CAD - $337.00 CAD
$337.00 CAD
$337.00 CAD - $337.00 CAD
$337.00 CAD

Vendu en lots de : 1

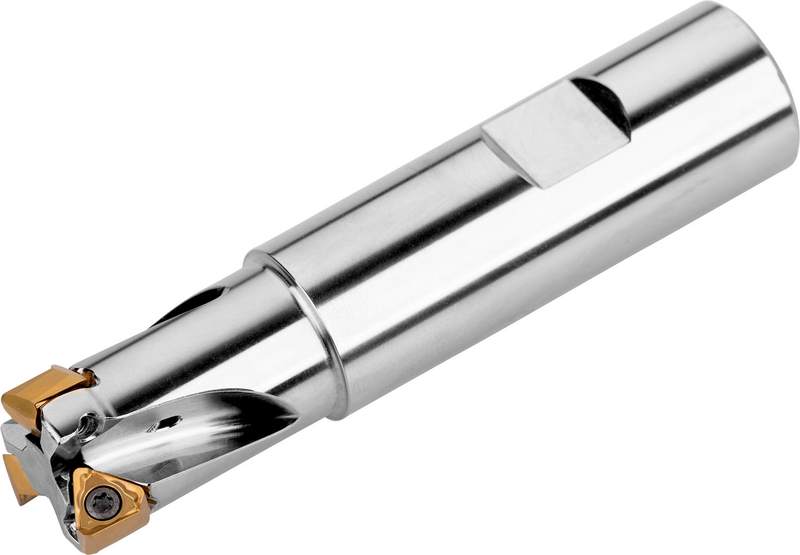

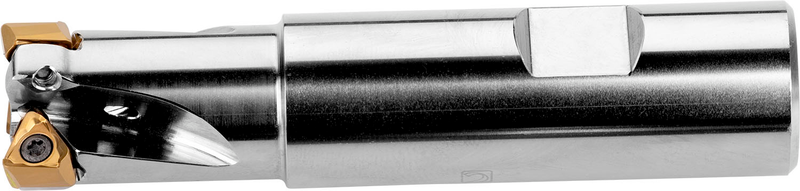

Fraise à surfacer-équarrir avec géométrie double négative utilisant 2 plaquettes double face TNGX 1004.., diamètre de coupe 19,05 mm (0,750 po) avec un angle d'attaque de 90° et une queue Weldon de 19,05 mm (0,750 po) conforme à la norme DIN 1835B, longueur fonctionnelle de 31,75 mm (1,250 po) et longueur totale de 88,9 mm (3,500 po), arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de gorges peu profondes avec une profondeur de coupe maximale de 5,00 mm (0,197 po)

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)075A2R125W075-ISTN10-C
Product Number7276925
Product FamilyISTN10

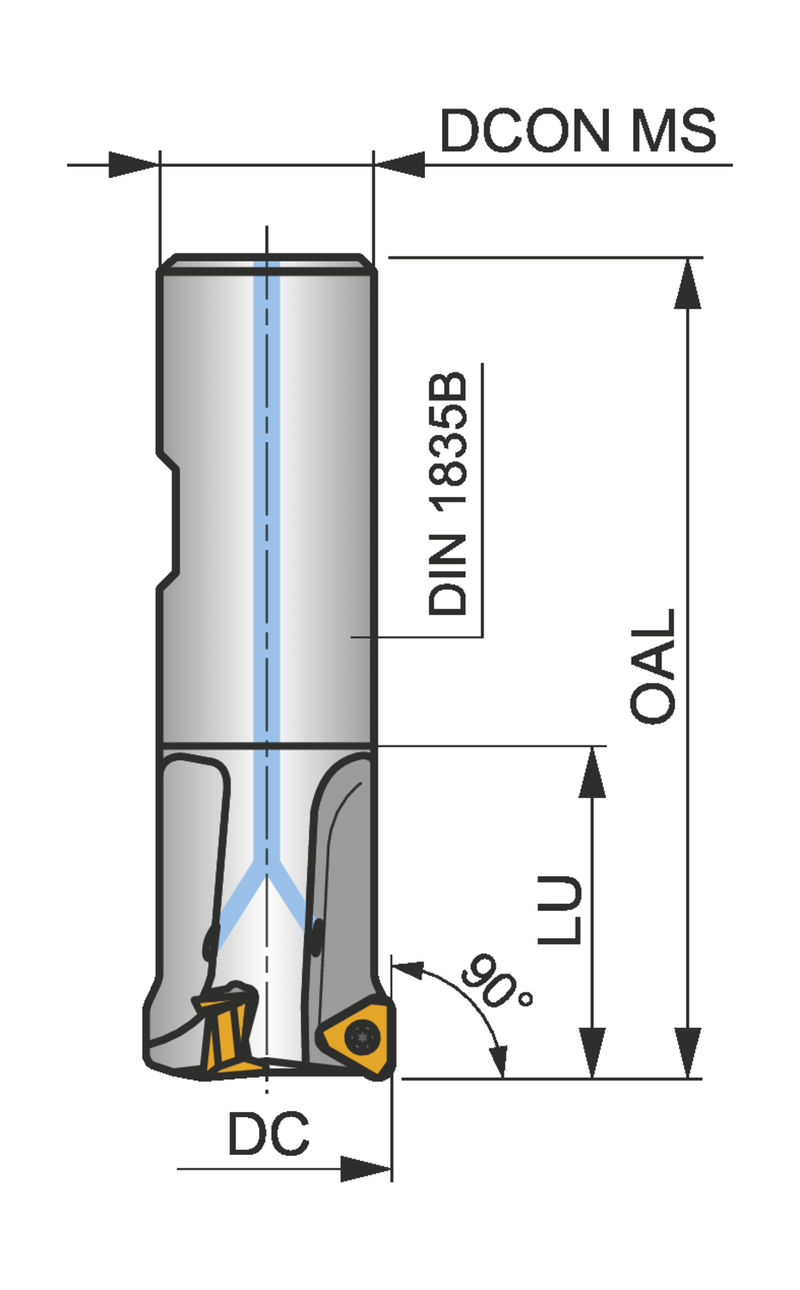

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.1 mm
Overall Length — in (OAL)3.5"
Overall Length — mm (OAL)89.0 mm
Usable Length — in (LU)1.25"
Usable Length — mm (LU)31.75 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.1 mm
Number of Flutes (NOF)2
Tool Information
Tool DesignSTN10
ShankQueue Weldon DIN 1835B
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276925
EAN3603603242081
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
K — Cast Iron Utilisation possible
N — Non-Ferrous Metals Usage principal
S — High Temperature Alloys Utilisation possible
H — Hardened Materials Déconseillé
File Type Download
075A2R125W075-ISTN10-C — 3D Model STP Download
075A2R125W075-ISTN10-C — 2D Model DXF Download
075A2R125W075-ISTN10-C — Line Drawing PDF Download
