075A3R102M10-ISTN10-C
075A3R102M10-ISTN10-C

075A3R102M10-ISTN10-C

UGC DOR7276938
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$321.00 CAD - $321.00 CAD
$321.00 CAD
$321.00 CAD - $321.00 CAD
$321.00 CAD

Vendu en lots de : 1

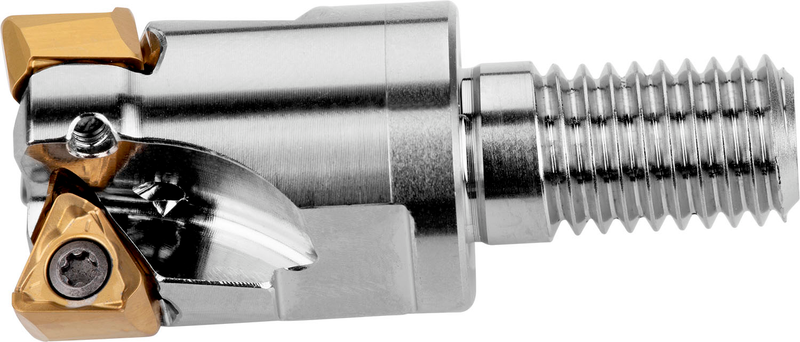

Fraise à surfacer-équarrir avec géométrie double négative utilisant 3 plaquettes double face TNGX 1004.., diamètre de coupe 19,05 mm avec angle d'attaque de 90° et queue filetée M10 pour porte-outils modulaires standards, longueur de dépassement 26 mm, arrosage central pour le surfaçage, le fraisage d'épaulements peu profonds et le fraisage de gorges peu profondes avec une profondeur de coupe maximale de 5 mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)075A3R102M10-ISTN10-C
Product Number7276938
Product FamilyISTN10

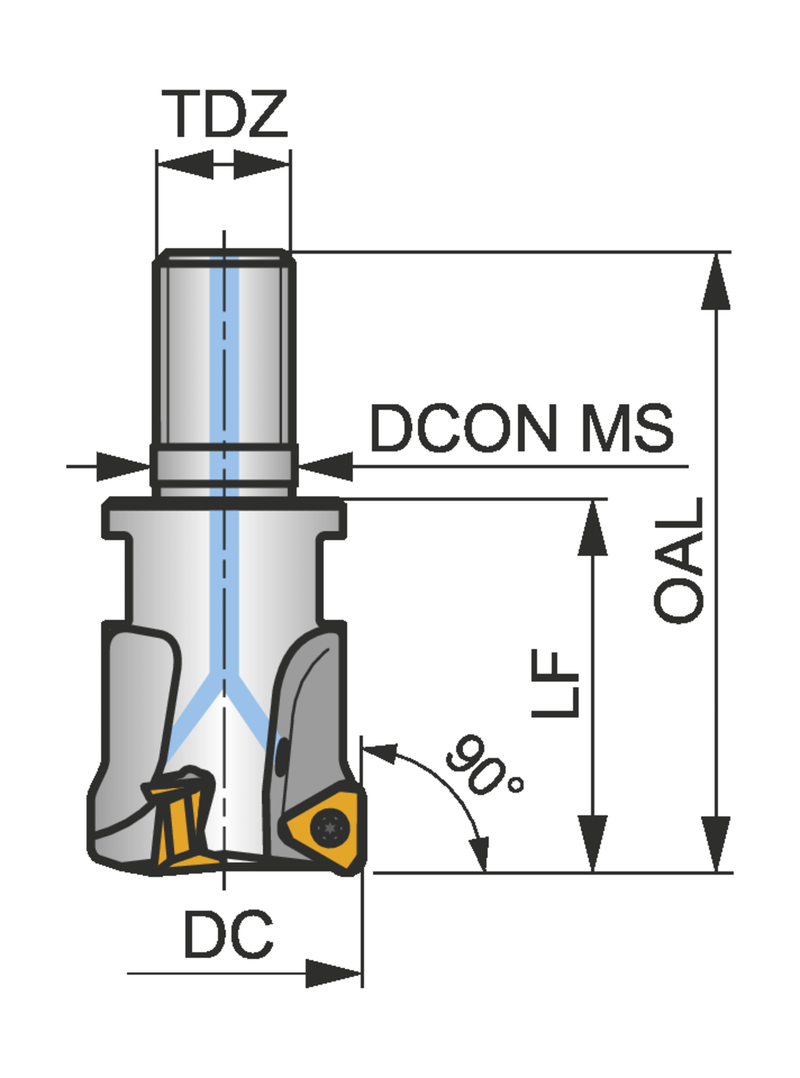

Dimensions
Cutting Diameter — in (DC)0.75"
Cutting Diameter — mm (DC)19.1 mm
Overall Length — in (OAL)1.772"
Overall Length — mm (OAL)45.0 mm
Functional Length — in (LF)1.024"
Functional Length — mm (LF)26.01 mm
Connection Dia. — in (DCON)0.413"
Connection Dia. — mm (DCON)10.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)M10
Tool Information
Tool DesignSTN10
ShankRaccord fileté
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276938
EAN3603603242210
File Type Download
075A3R102M10-ISTN10-C — 3D Model STP Download
075A3R102M10-ISTN10-C — 2D Model DXF Download
075A3R102M10-ISTN10-C — Line Drawing PDF Download
