200T03R-IS90AD16E163-C
200T03R-IS90AD16E163-C

200T03R-IS90AD16E163-C

UGC DOR7276982
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,386.00 CAD - $1,386.00 CAD
$1,386.00 CAD
$1,386.00 CAD - $1,386.00 CAD
$1,386.00 CAD

Vendu en lots de : 1

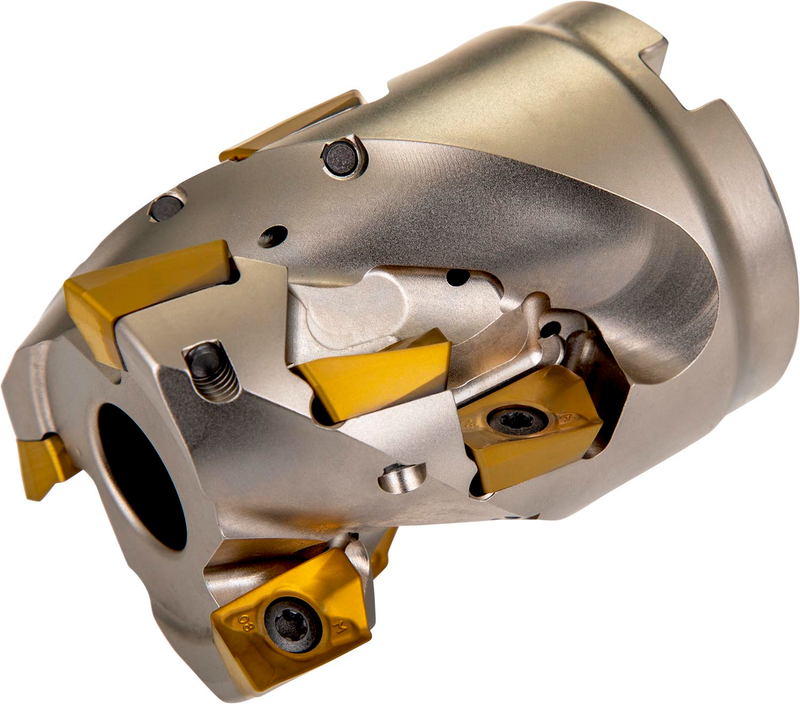

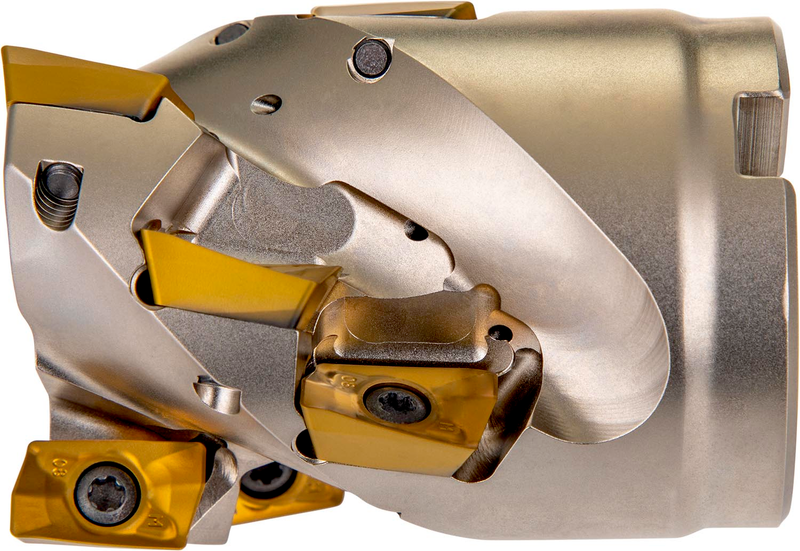

Fraise à épaulement qui utilise 3 plaquettes simple face ADMX 1606.. ou ADEX 1606.., diamètre de coupe 2,000'' avec un angle d'attaque de 90° et un alésage de raccordement de 0,750'' selon DIN 8030, longueur de dépassement de 1,63'' pour le fraisage en plongée, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en piqué et le fraisage en piqué progressif

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200T03R-IS90AD16E163-C
Product Number7276982
Product FamilyJ(T)-ISAD16F
Insert Geometry
Depth of Cut Max — in (APMX)1.63"
Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)50.8 mm
Overall Length — in (OAL)2.76"
Overall Length — mm (OAL)70.1 mm
Connection Dia. — in (DCON)0.75"
Connection Dia. — mm (DCON)19.05 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankFraise-scie DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276982
EAN3603603242265
File Type Download
200T03R-IS90AD16E163-C — 3D Model STP Download
200T03R-IS90AD16E163-C — 2D Model DXF Download
