250T04R-IS90AD16E268-C
250T04R-IS90AD16E268-C

250T04R-IS90AD16E268-C

UGC DOR7276984
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,168.00 CAD - $2,168.00 CAD
$2,168.00 CAD
$2,168.00 CAD - $2,168.00 CAD
$2,168.00 CAD

Vendu en lots de : 1

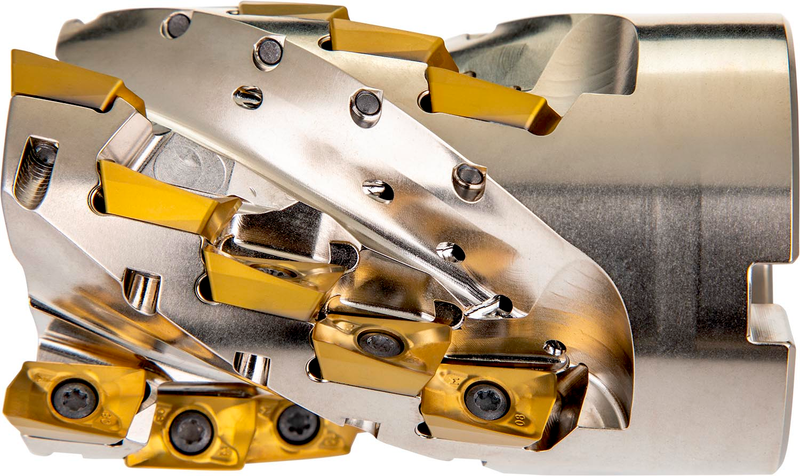

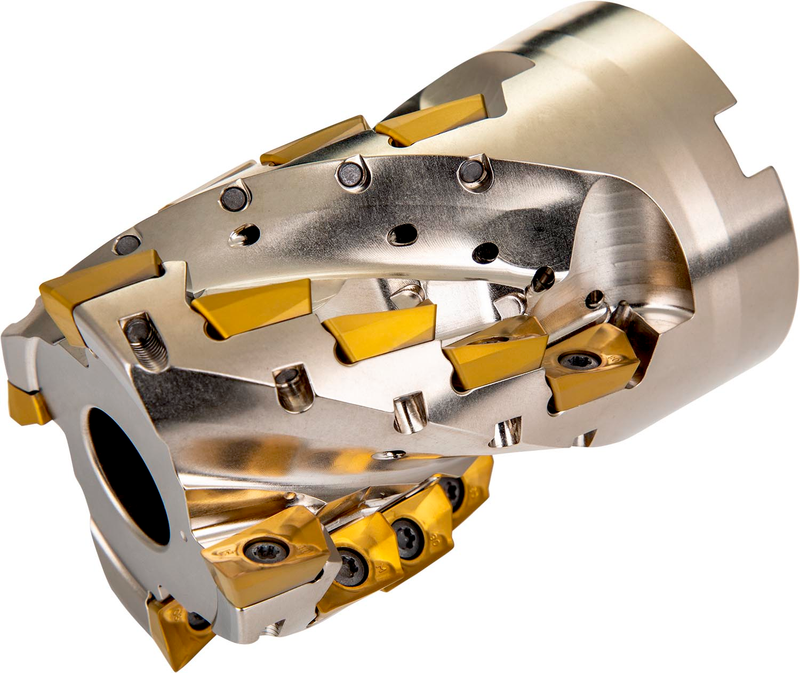

Fraise à épaulement qui utilise 4 plaquettes simple-face ADMX 1606.. ou ADEX 1606.., diamètre de coupe de 2,500'' avec un angle d'attaque de 90° et un alésage de raccordement de 0,750'' selon la norme DIN 8030, longueur de saillie de 2,68'' pour le fraisage de copie, le fraisage d'épaulements peu profonds, le fraisage de fentes peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage en plongée progressif

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250T04R-IS90AD16E268-C
Product Number7276984
Product FamilyJ(T)-ISAD16E
Insert Geometry
Depth of Cut Max — in (APMX)2.69"
Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Overall Length — in (OAL)3.94"
Overall Length — mm (OAL)100.08 mm
Connection Dia. — in (DCON)1.0"
Connection Dia. — mm (DCON)25.4 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankFraise à surfacer-dresser DIN 8030 – Fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276984
EAN3603603242289
File Type Download
250T04R-IS90AD16E268-C — 3D Model STP Download
250T04R-IS90AD16E268-C — 2D Model DXF Download
