300T04R-IS90AD16E217-C
300T04R-IS90AD16E217-C

300T04R-IS90AD16E217-C

UGC DOR7276985
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,035.00 CAD - $2,035.00 CAD
$2,035.00 CAD
$2,035.00 CAD - $2,035.00 CAD
$2,035.00 CAD

Vendu en lots de : 1

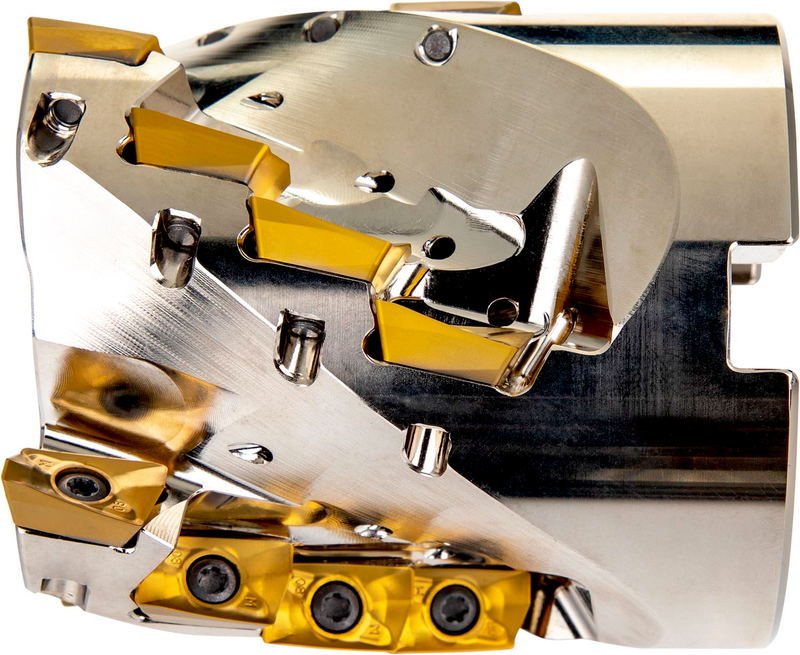

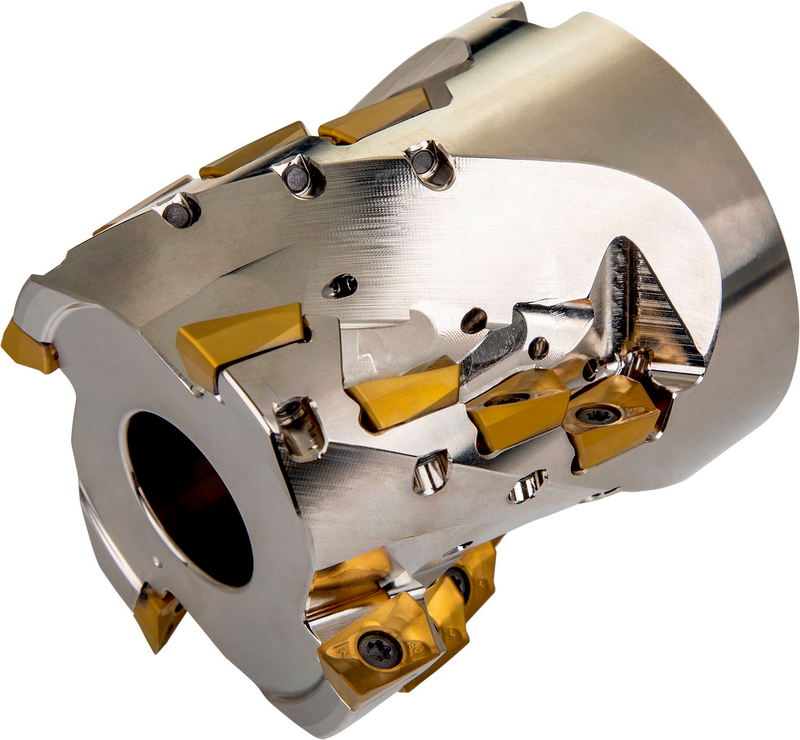

Fraise à épaule qui utilise 4 plaquettes simple-face ADMX 1606.. ou ADEX 1606.., diamètre de coupe 3.000'' avec un angle d'attaque de 90° et un alésage de connexion de 1.000'' selon DIN 8030, longueur de protrusion de 2.17'' pour le copiage, le surfaçage d'épaulement peu profond, le rainurage peu profond, l'interpolation hélicoïdale, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300T04R-IS90AD16E217-C
Product Number7276985
Product FamilyJ(T)-ISAD16E
Insert Geometry
Depth of Cut Max — in (APMX)2.16"
Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Overall Length — in (OAL)3.35"
Overall Length — mm (OAL)85.09 mm
Connection Dia. — in (DCON)1.25"
Connection Dia. — mm (DCON)31.75 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankFraise-disque DIN 8030 – fraise hélicoïdale
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276985
EAN3603603242296
File Type Download
300T04R-IS90AD16E217-C — 3D Model STP Download
300T04R-IS90AD16E217-C — 2D Model DXF Download
