200J3R551CA50-ISAD16E315
200J3R551CA50-ISAD16E315
200J3R551CA50-ISAD16E315

200J3R551CA50-ISAD16E315

UGC DOR7276989
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,383.00 CAD - $2,383.00 CAD
$2,383.00 CAD
$2,383.00 CAD - $2,383.00 CAD
$2,383.00 CAD

Vendu en lots de : 1

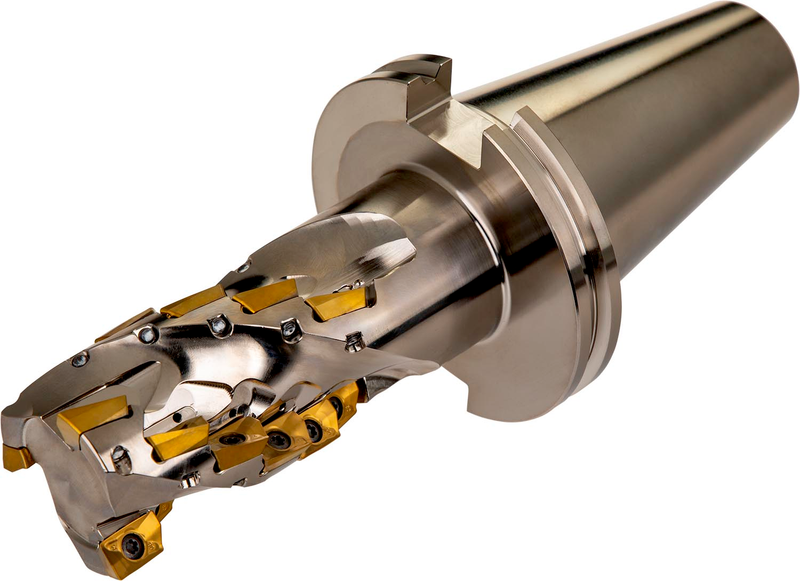

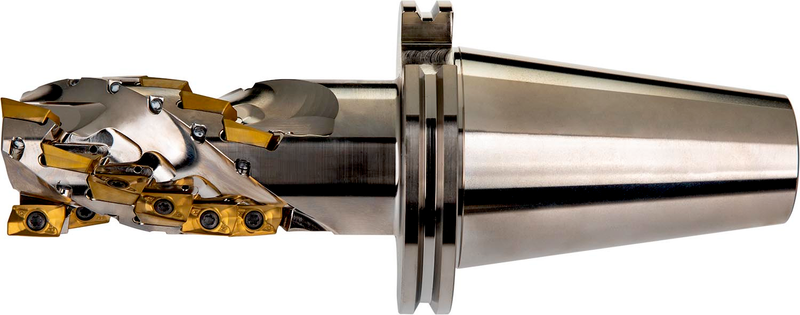

Fraise à épaule qui utilise 3 plaquettes simple-face ADMX 1606... ou ADEX 1606..., diamètre de coupe 2.000'' avec angle d'attaque de 90° et cône CAT 50 selon ANSI B5.50, longueur totale de 3.15'' pour le fraisage de copiage, le fraisage d'épaulement peu profond, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)200J3R551CA50-ISAD16E315
Product Number7276989
Product FamilyJ(T)-ISAD16E
Insert Geometry
Depth of Cut Max — in (APMX)3.22"

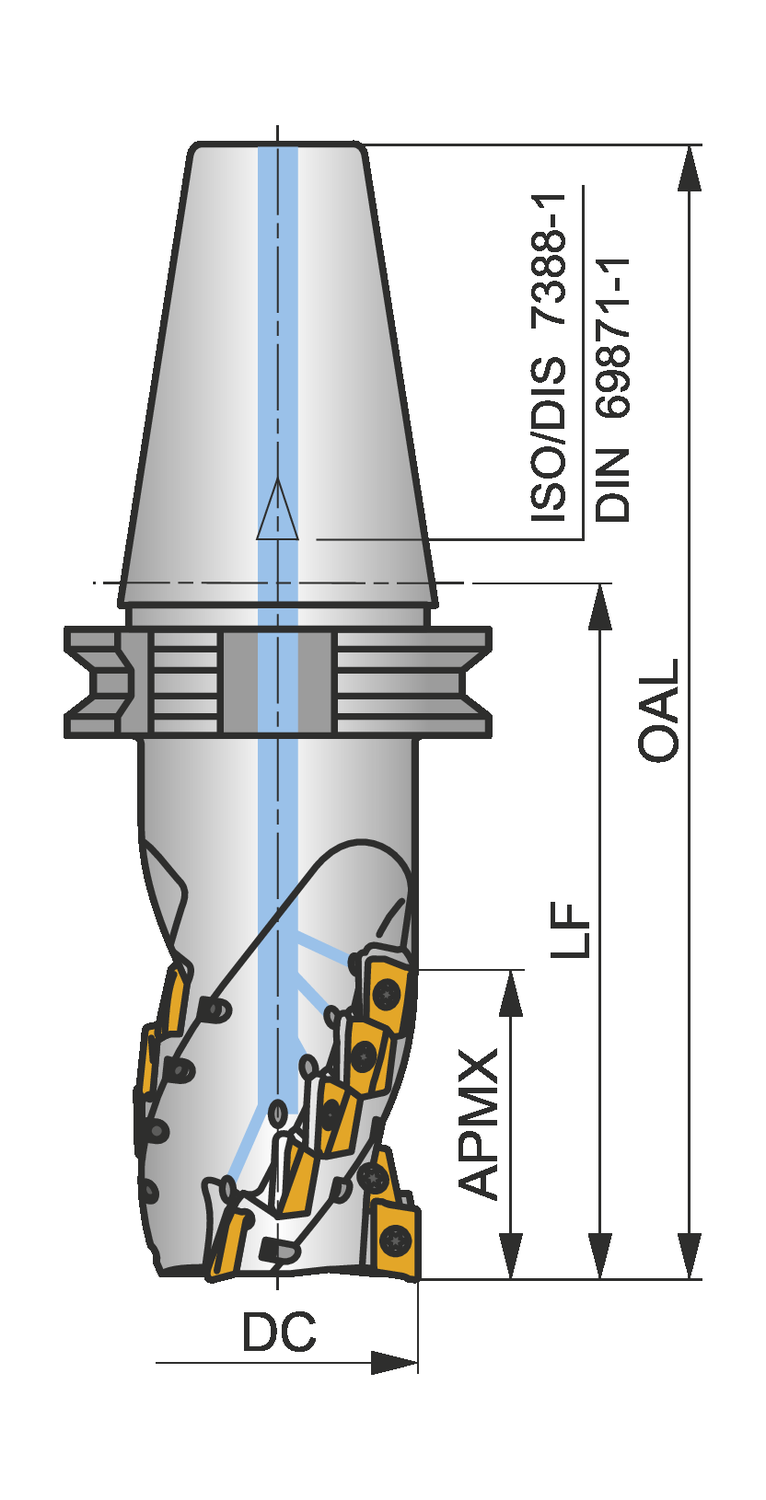

Dimensions
Cutting Diameter — in (DC)2.0"
Cutting Diameter — mm (DC)50.8 mm
Overall Length — in (OAL)9.52"
Overall Length — mm (OAL)241.81 mm
Functional Length — in (LF)5.51"
Functional Length — mm (LF)139.95 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankQueue ANSI B5.50
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7276989
EAN3603603242333
File Type Download
200J3R551CA50-ISAD16E315 — 3D Model STP Download
200J3R551CA50-ISAD16E315 — 2D Model DXF Download
200J3R551CA50-ISAD16E315 — Line Drawing PDF Download
