250J3R610CA50-ISAD16E374
250J3R610CA50-ISAD16E374
250J3R610CA50-ISAD16E374

250J3R610CA50-ISAD16E374

UGC DOR7277021
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$2,588.00 CAD - $2,588.00 CAD
$2,588.00 CAD
$2,588.00 CAD - $2,588.00 CAD
$2,588.00 CAD

Vendu en lots de : 1

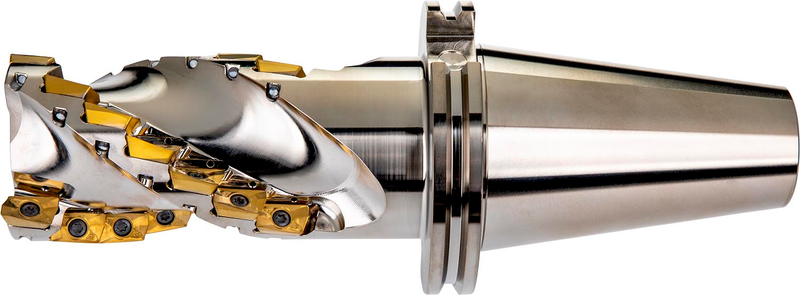

Fraise à épaulement qui utilise 4 plaquettes simple face ADMX 1606... ou ADEX 1606..., diamètre de coupe de 2,500'' avec un angle d'attaque de 90° et un cône CAT 50 selon la norme ANSI B5.50, longueur totale de 3,74'' pour le fraisage de copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée et le fraisage progressif en plongée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)250J3R610CA50-ISAD16E374
Product Number7277021
Product FamilyJ(T)-ISAD16F
Insert Geometry
Depth of Cut Max — in (APMX)3.74"

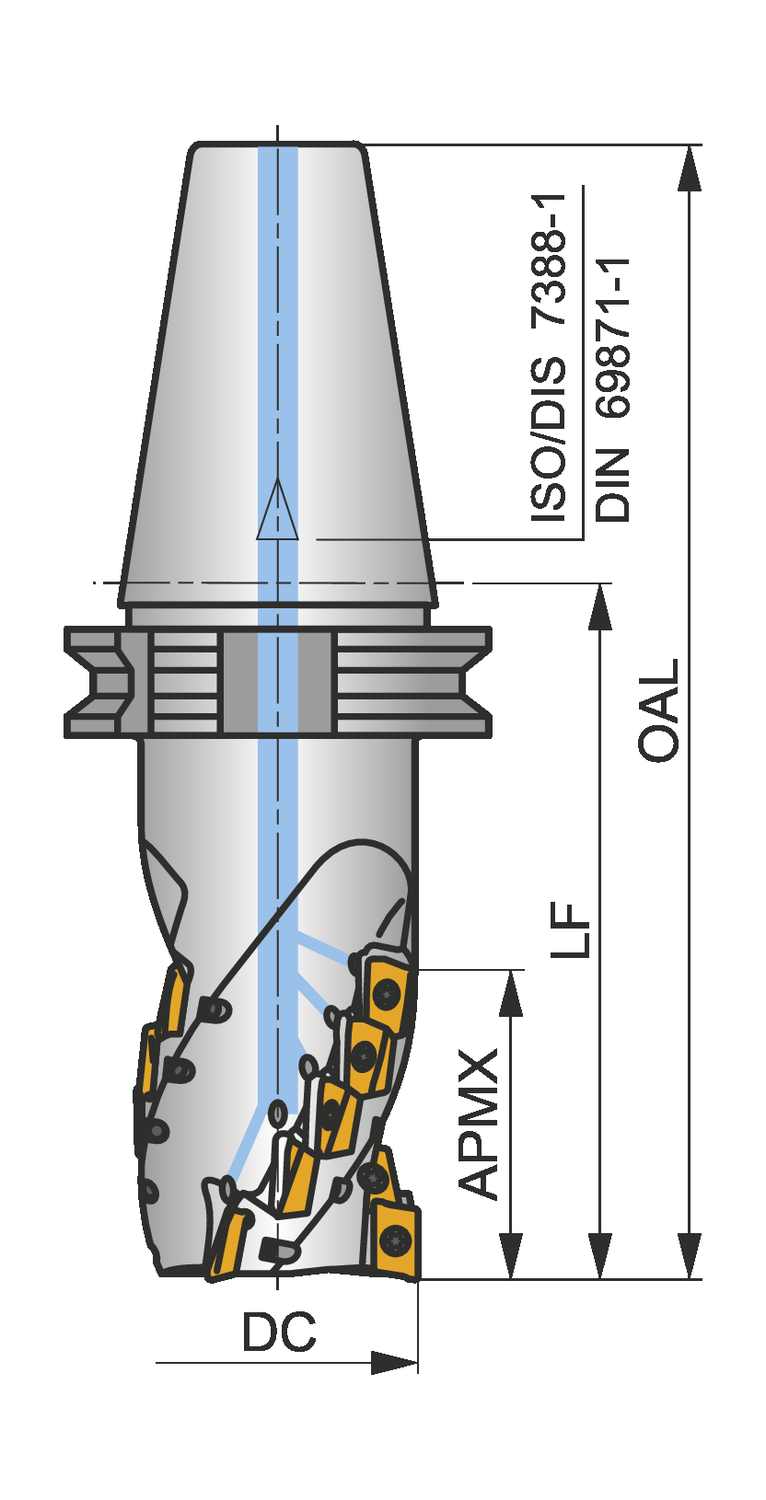

Dimensions
Cutting Diameter — in (DC)2.5"
Cutting Diameter — mm (DC)63.5 mm
Overall Length — in (OAL)9.52"
Overall Length — mm (OAL)241.81 mm
Functional Length — in (LF)5.51"
Functional Length — mm (LF)139.95 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignJ(T)-SAD16E
ShankQueue ANSI B5.50
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7277021
EAN3603603242357
File Type Download
250J3R610CA50-ISAD16E374 — 3D Model STP Download
250J3R610CA50-ISAD16E374 — 2D Model DXF Download
250J3R610CA50-ISAD16E374 — Line Drawing PDF Download
