300J4R650CA50-ISAD16E425
300J4R650CA50-ISAD16E425
300J4R650CA50-ISAD16E425

300J4R650CA50-ISAD16E425

UGC DOR7277022
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$3,230.00 CAD - $3,230.00 CAD
$3,230.00 CAD
$3,230.00 CAD - $3,230.00 CAD
$3,230.00 CAD

Vendu en lots de : 1

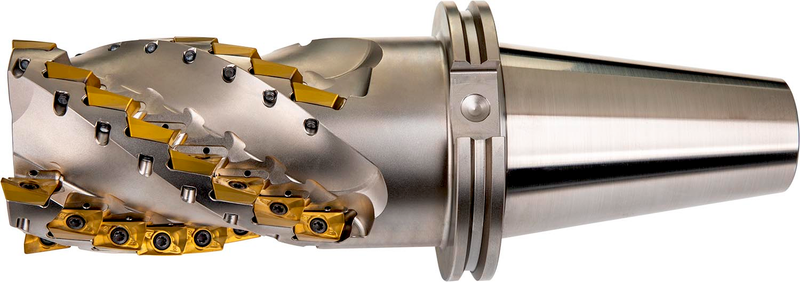

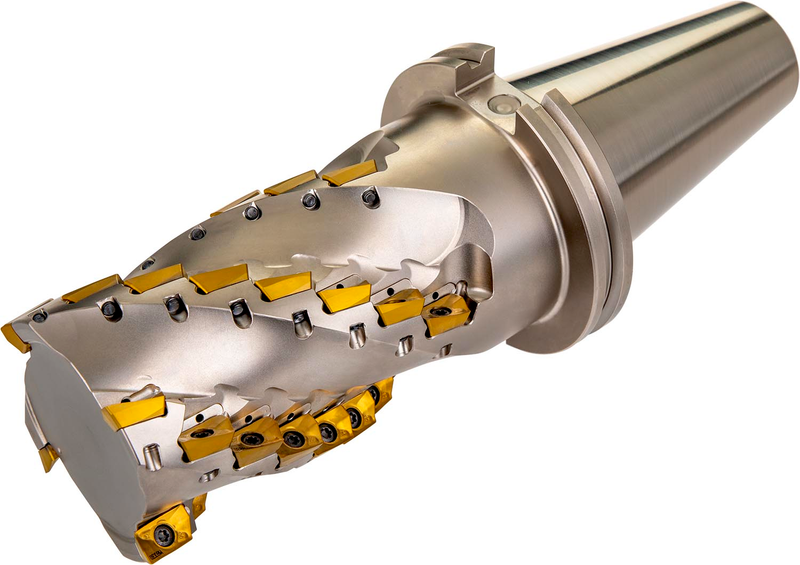

Fraise à épaule utilisant 4 plaquettes simple face ADMX 1606... ou ADEX 1606..., diamètre de coupe de 3.000'' avec un angle d'attaque de 90° et une queue conique CAT 50 selon ANSI B5.50, longueur totale de 4.25'' pour le fraisage de copiage, le fraisage d'épaulement peu profond, le fraisage de rainure peu profonde, l'interpolation hélicoïdale, le fraisage en plongée et le fraisage progressif en plongée

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)300J4R650CA50-ISAD16E425
Product Number7277022
Product FamilyJ(T)-ISAD16E
Insert Geometry
Depth of Cut Max — in (APMX)4.27"

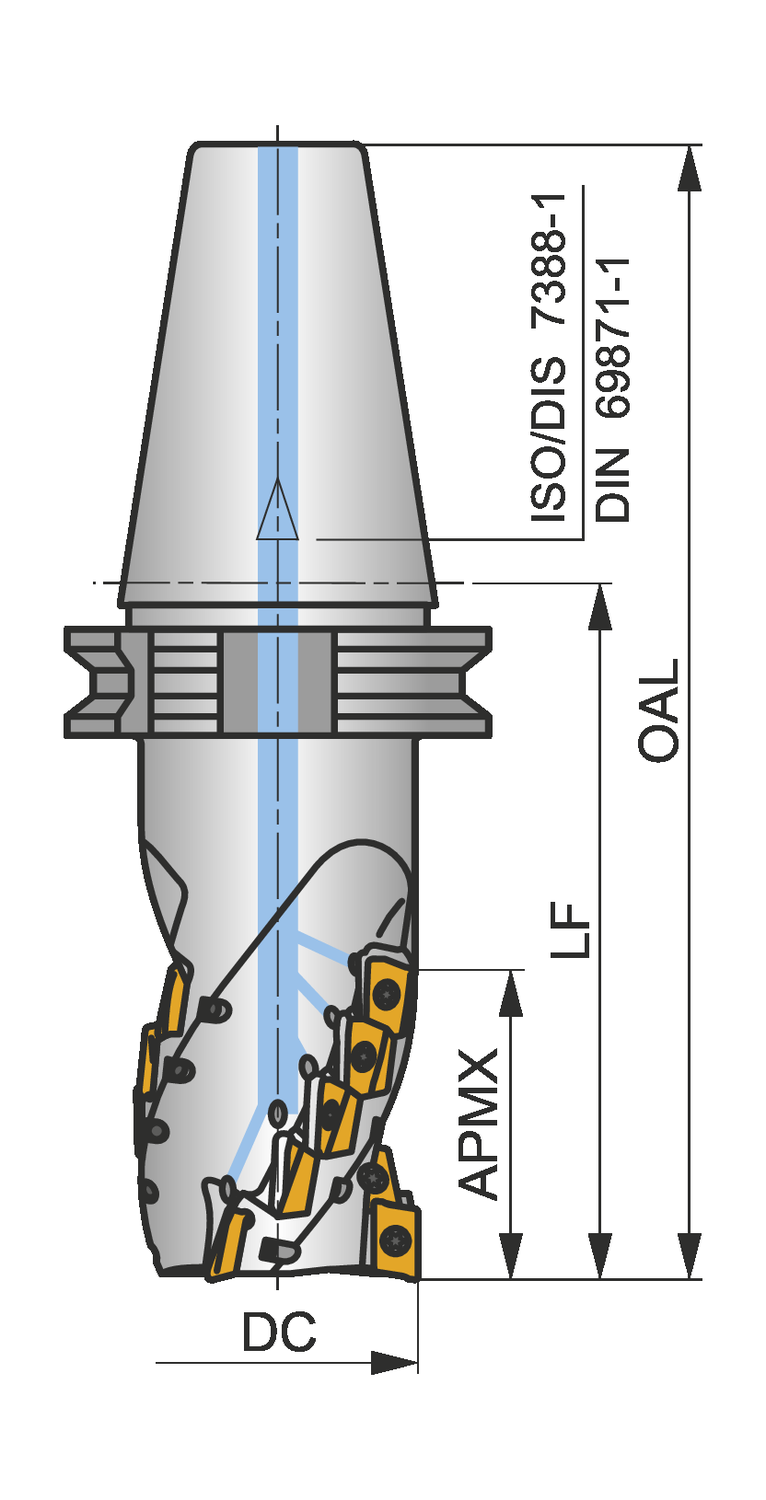

Dimensions
Cutting Diameter — in (DC)3.0"
Cutting Diameter — mm (DC)76.2 mm
Overall Length — in (OAL)10.5"
Overall Length — mm (OAL)266.7 mm
Functional Length — in (LF)6.5"
Functional Length — mm (LF)165.1 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignJ(T)-SAD16E
ShankQueue ANSI B5.50
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7277022
EAN3603603242364
File Type Download
300J4R650CA50-ISAD16E425 — 3D Model STP Download
300J4R650CA50-ISAD16E425 — 2D Model DXF Download
300J4R650CA50-ISAD16E425 — Line Drawing PDF Download
