GNFL 361220-MM-S01:T9315
GNFL 361220-MM-S01:T9315

GNFL 361220-MM-S01:T9315

UGC DOR7317927
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.43 CAD - $76.43 CAD
$76.43 CAD
$76.43 CAD - $76.43 CAD
$76.43 CAD

Vendu en lots de : 5

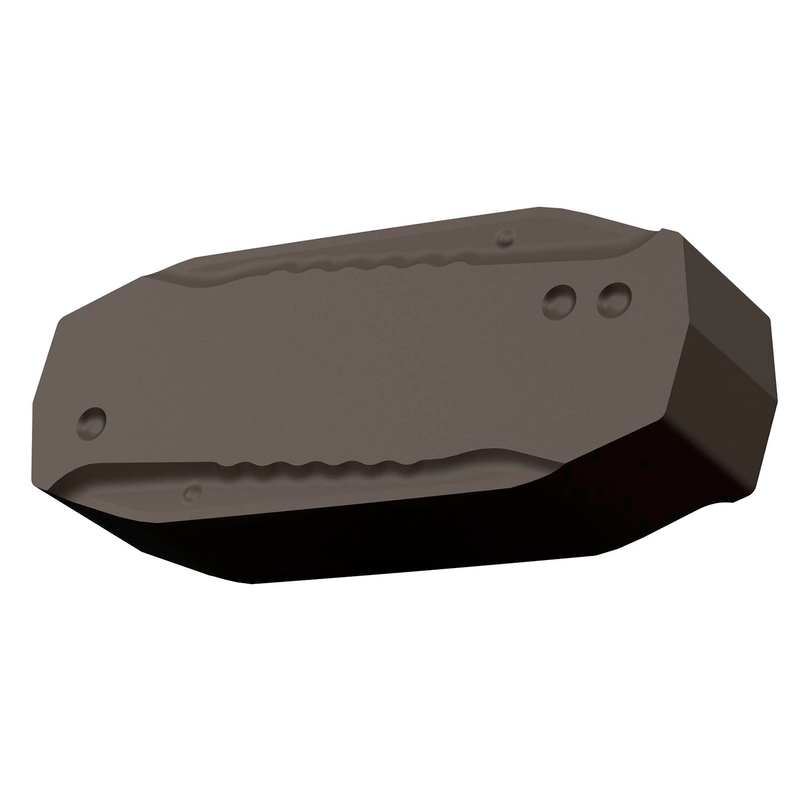

Plaquette à barpeeling négative double face, rectangulaire, de 36,5 mm de long, 12 mm d'épaisseur pour une profondeur de coupe de 2 mm, précision d'indexage selon la classe de tolérance ISO G, brise-copeaux MM avec préparation d'arête de coupe S01, en nuance T9315, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la plage ISO P05-P25, pour les aciers à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GNFL 361220-MM-S01:T9315
GradeT9315
Chipbreaker (CBMD)MM-S01
Product Number7317927
Product FamilyLNGF 36

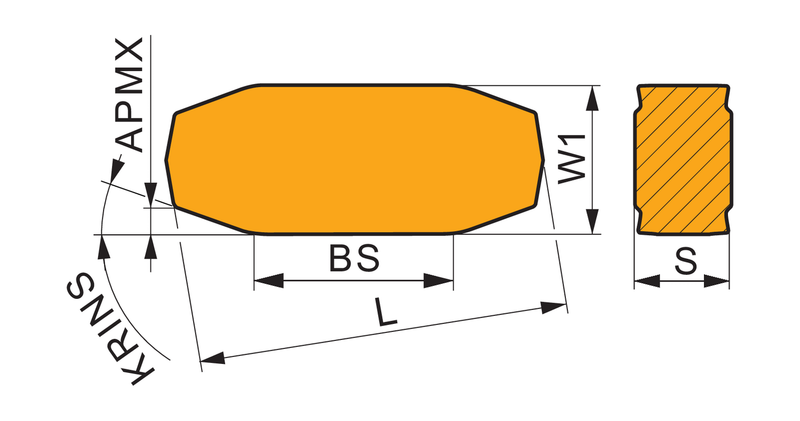

Insert Geometry
Insert DesignGNLF 36
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7317927
EAN3603603276086
File Type Download
GNFL 361220-MM-S01:T9315 — Line Drawing PDF Download
