GNL 401035-MM-S01:T7325
GNL 401035-MM-S01:T7325

GNL 401035-MM-S01:T7325

UGC DOR7317932
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 CAD - $78.57 CAD
$78.57 CAD
$78.57 CAD - $78.57 CAD
$78.57 CAD

Vendu en lots de : 5

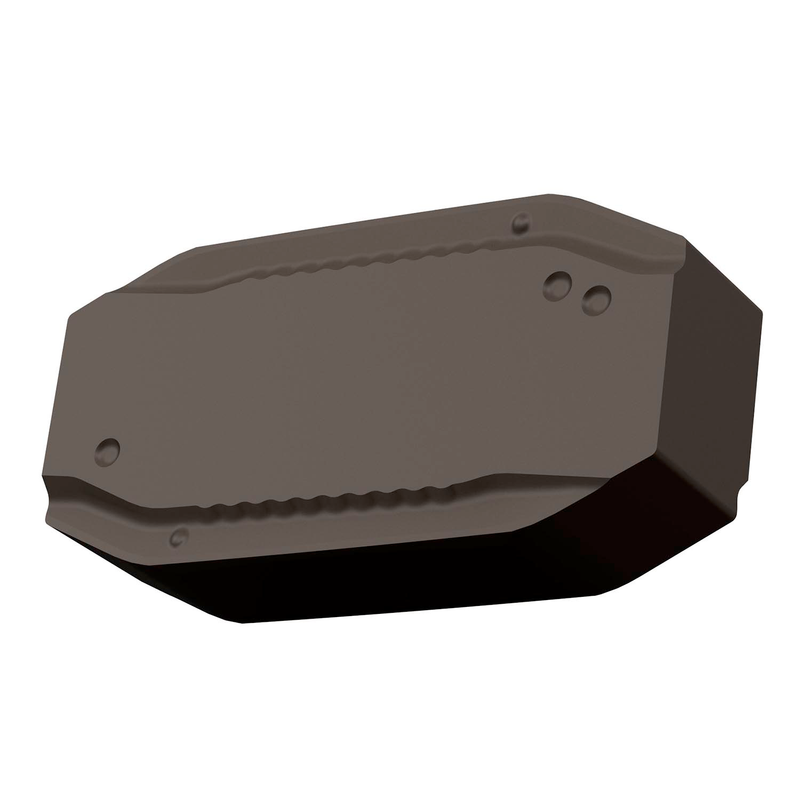

Plaquette de barpeau négative double face, rectangulaire, d'une longueur de 40 mm, de 9,6 mm d'épaisseur pour une profondeur de coupe de 3,5 mm, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux MM avec préparation d'arête de coupe S01, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour les aciers inoxydables à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GNL 401035-MM-S01:T7325
GradeT7325
Chipbreaker (CBMD)MM
Product Number7317932
Product FamilyLNGF 40

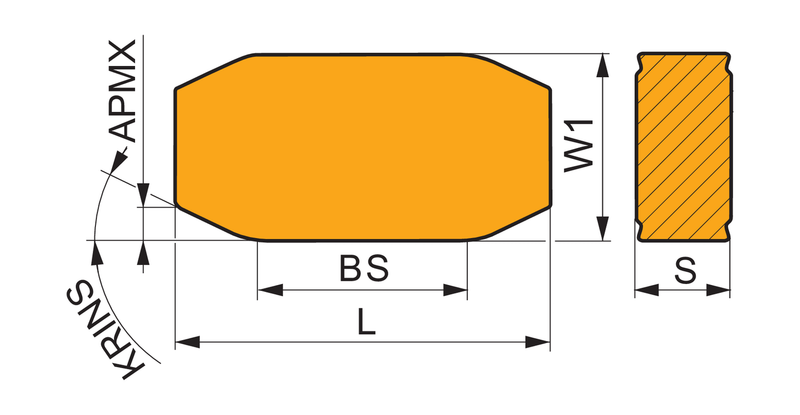

Insert Geometry
Insert DesignLNGF 40
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.15 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7317932
EAN3603603276130
File Type Download
GNL 401035-MM-S01:T7325 — Line Drawing PDF Download
