GNLG 401035-MM-S02:T7325
GNLG 401035-MM-S02:T7325

GNLG 401035-MM-S02:T7325

UGC DOR7317934
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$78.57 CAD - $78.57 CAD
$78.57 CAD
$78.57 CAD - $78.57 CAD
$78.57 CAD

Vendu en lots de : 5

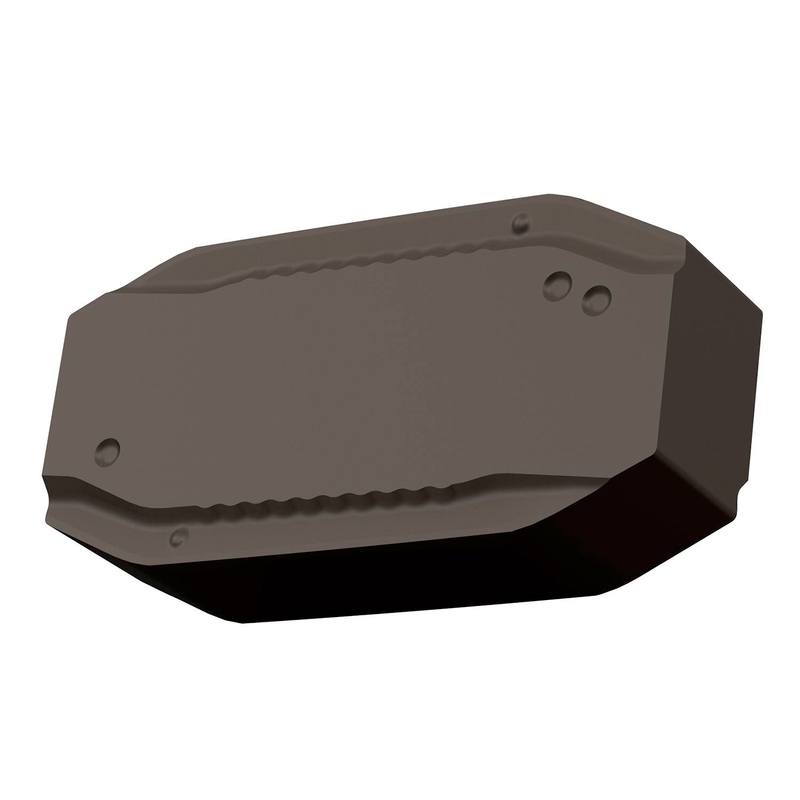

Plaquette de barre de peler négative double face, rectangulaire de 40mm de long, 9,6mm d'épaisseur pour une profondeur de coupe de 3,5mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux MM avec préparation d'arête de coupe S02, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour les aciers inoxydables à résistance moyenne

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)GNLG 401035-MM-S02:T7325
GradeT7325
Chipbreaker (CBMD)MM
Product Number7317934
Product FamilyLNGF 40

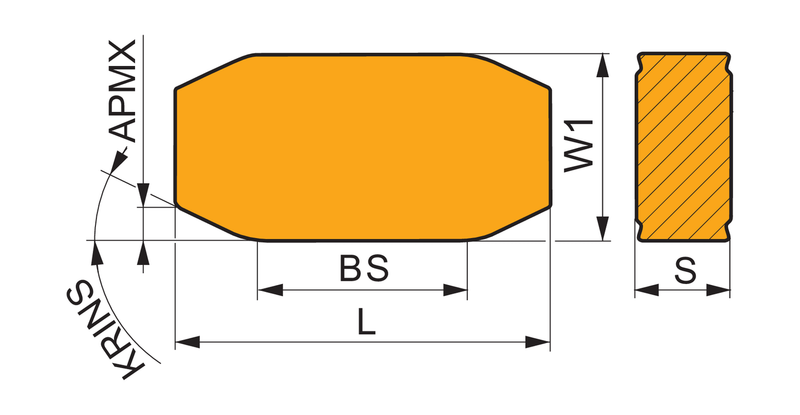

Insert Geometry
Insert DesignLNGF 40
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.394"
Insert Thickness — mm (S)10.15 mm
Depth of Cut Max — in (APMX)0.138"
Depth of Cut Max — mm (APMX)3.5 mm
Tool Information
Reference Numbers
EDP Number7317934
EAN3603603276154
File Type Download
GNLG 401035-MM-S02:T7325 — Line Drawing PDF Download
