RNGH 381200-MM:T7325
RNGH 381200-MM:T7325

RNGH 381200-MM:T7325

UGC DOR7317937
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$112.14 CAD - $112.14 CAD
$112.14 CAD
$112.14 CAD - $112.14 CAD
$112.14 CAD

Vendu en lots de : 3

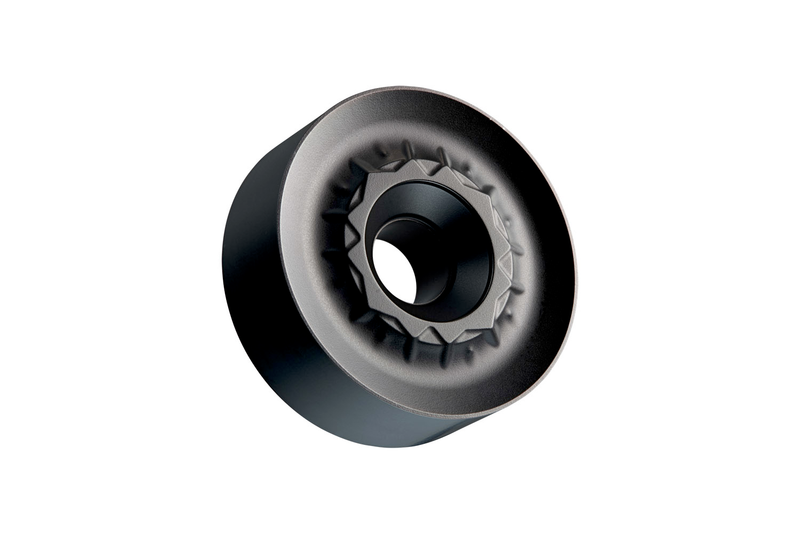

Plaquette de tournage de barres négative simple face, ronde de 38,1mm de diamètre, 12,7mm d'épaisseur pour une profondeur de coupe de 8mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux MM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour les aciers inoxydables

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)RNGH 381200-MM:T7325
GradeT7325
Chipbreaker (CBMD)MM
Product Number7317937
Product FamilySNGH
Insert Geometry
Insert DesignHRNG
Insert Shape Code (SC)R - rond
Insert Thickness — in (S)0.5"
Insert Thickness — mm (S)12.7 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)12.0 mm
Tool Information
Reference Numbers
EDP Number7317937
EAN3603603276185
File Type Download

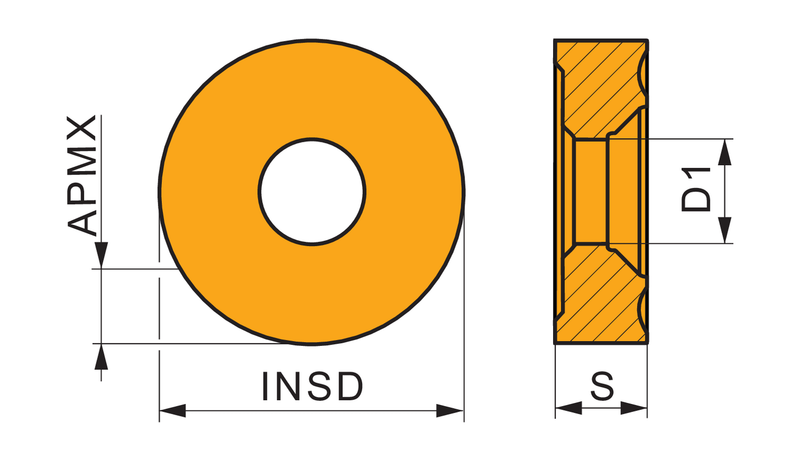

RNGH 381200-MM:T7325 — Line Drawing PDF Download
