WNGF 201380-MM-S01:T6310
WNGF 201380-MM-S01:T6310

WNGF 201380-MM-S01:T6310

UGC DOR7317943
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.57 CAD - $133.57 CAD
$133.57 CAD
$133.57 CAD - $133.57 CAD
$133.57 CAD

Vendu en lots de : 3

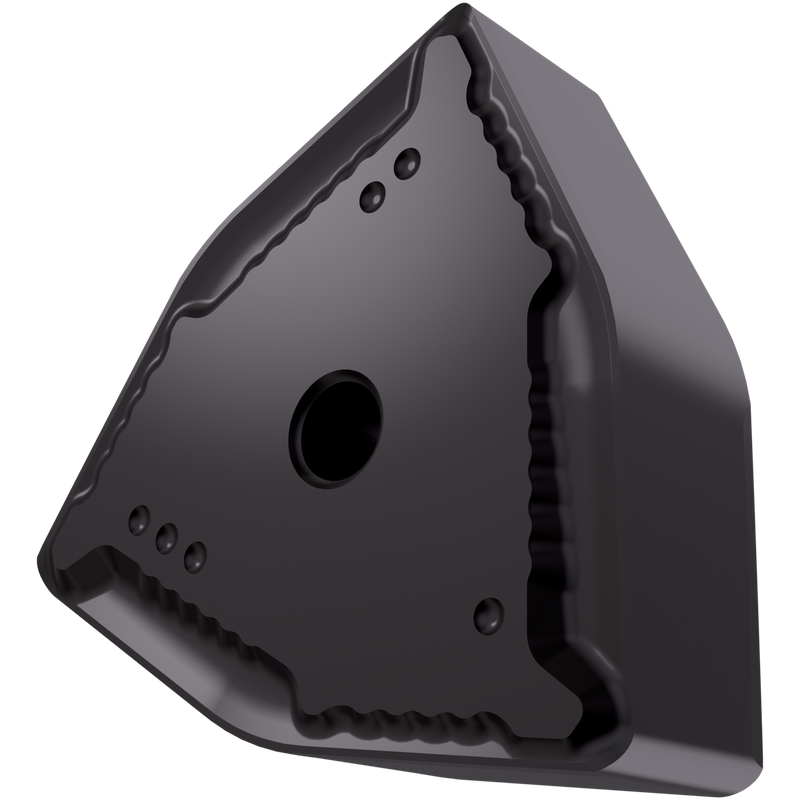

Plaquette à double face négative pour écroûtage, trigone 80° avec diamètre de cercle inscrit de 31,75mm, 13mm d'épaisseur pour une profondeur de coupe de 8mm, précision de positionnement selon la classe de tolérance ISO G, brise-copeaux MM avec préparation d'arête de coupe S01, en nuance T6310, un carbure WC-Co à grain extra-fin revêtu PVD dans la gamme ISO M01-M15, pour les aciers inoxydables à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNGF 201380-MM-S01:T6310
GradeT6310
Chipbreaker (CBMD)MM-S01
Product Number7317943
Product FamilyWNGF

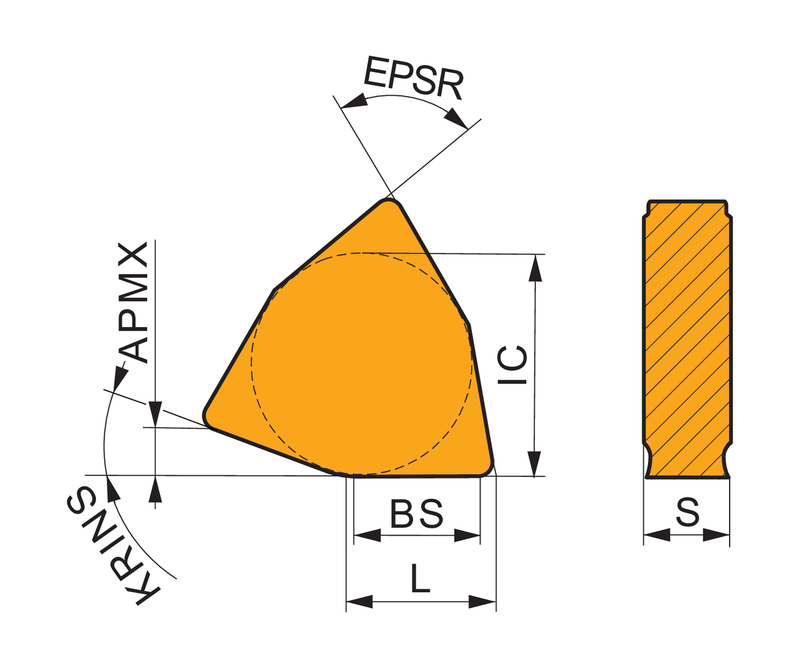

Insert Geometry
Insert DesignFNGW
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.512"
Insert Thickness — mm (S)13.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number7317943
EAN3603603276246
File Type Download
WNGF 201380-MM-S01:T6310 — Line Drawing PDF Download
