WNGF 201380-MM-S01:T7325
WNGF 201380-MM-S01:T7325

WNGF 201380-MM-S01:T7325

UGC DOR7317944
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$133.57 CAD - $133.57 CAD
$133.57 CAD
$133.57 CAD - $133.57 CAD
$133.57 CAD

Vendu en lots de : 3

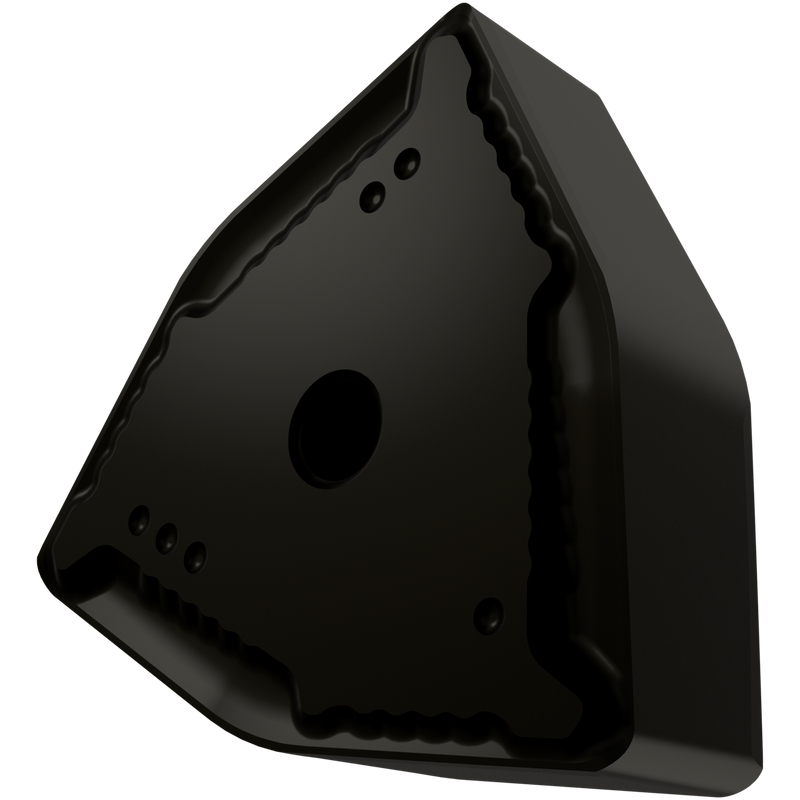

Plaquette négative double-face de décapage rotatif, trigon 80° avec diamètre de cercle inscrit de 31,75 mm, épaisseur de 13 mm pour une profondeur de coupe de 8 mm, précision de positionnement selon la classe de tolérance ISO-G, brise-copeaux MM avec préparation d'arête de coupe S01, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD dans la gamme ISO M10-M25, pour les aciers inoxydables à haute résistance

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)WNGF 201380-MM-S01:T7325
GradeT7325
Chipbreaker (CBMD)MM-S01
Product Number7317944
Product FamilyRÉSEAU FRANCOPHONE MONDIAL

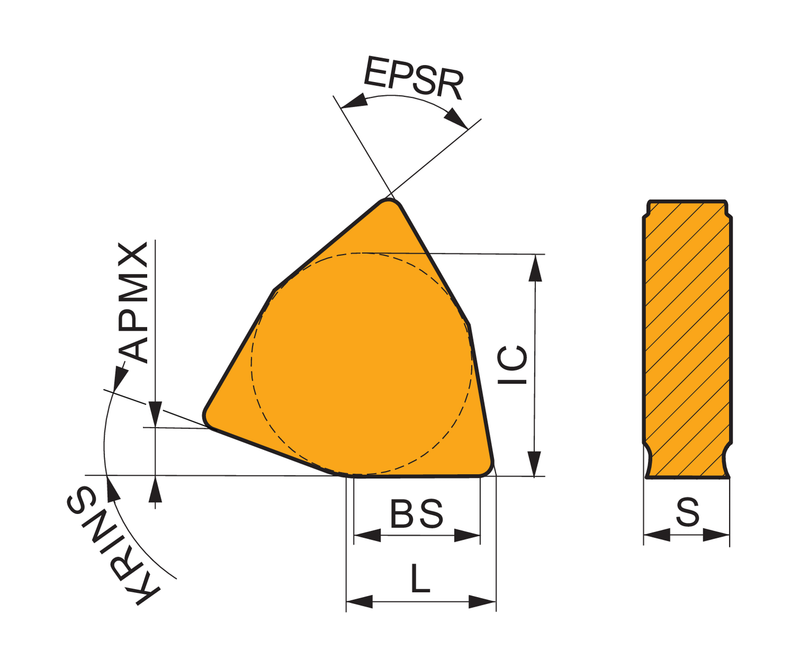

Insert Geometry
Insert DesignWNGF
Insert Shape Code (SC)W - trigone
Inscribed Circle Dia. — in (IC)1.25"
Inscribed Circle Dia. — mm (IC)31.75 mm
Insert Thickness — in (S)0.512"
Insert Thickness — mm (S)13.0 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Tool Information
Reference Numbers
EDP Number7317944
EAN3603603276253
File Type Download
WNGF 201380-MM-S01:T7325 — Line Drawing PDF Download
