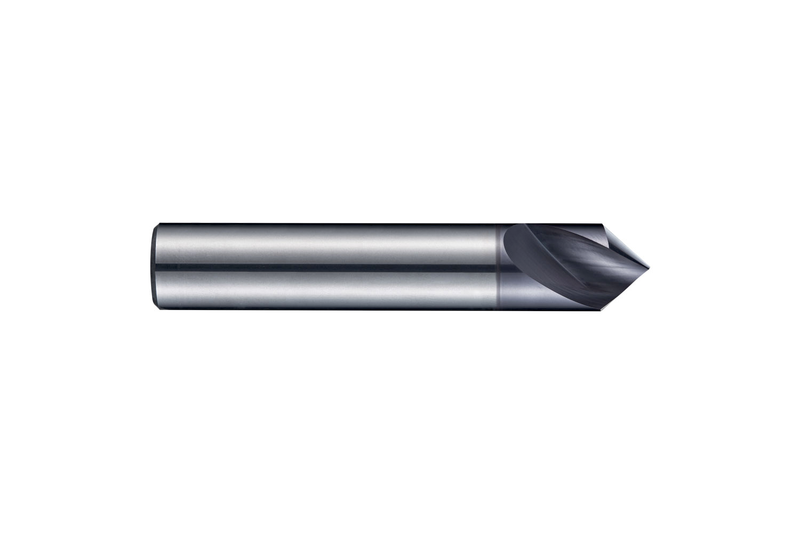

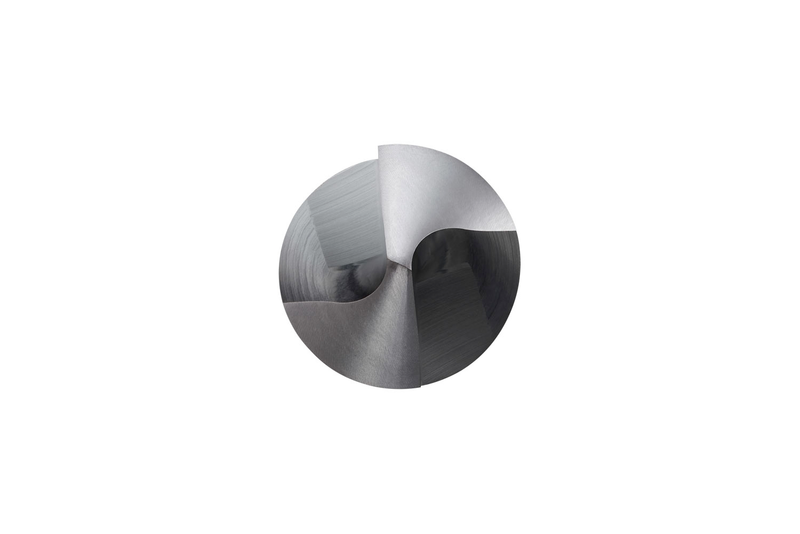

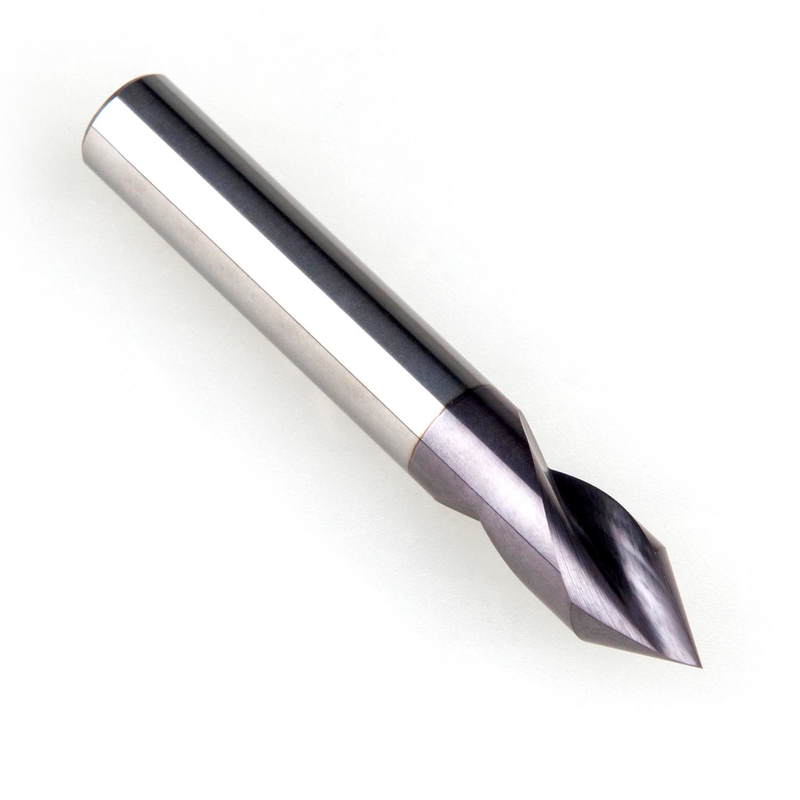

R60116.0
R60116.0
R60116.0
R60116.0

R60116.0

UGC DOR7341676
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.51 CAD - $64.51 CAD
$64.51 CAD
$64.51 CAD - $64.51 CAD
$64.51 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)R60116.0
GradeTiAlN
Product Number7341676
Product FamilyR6011

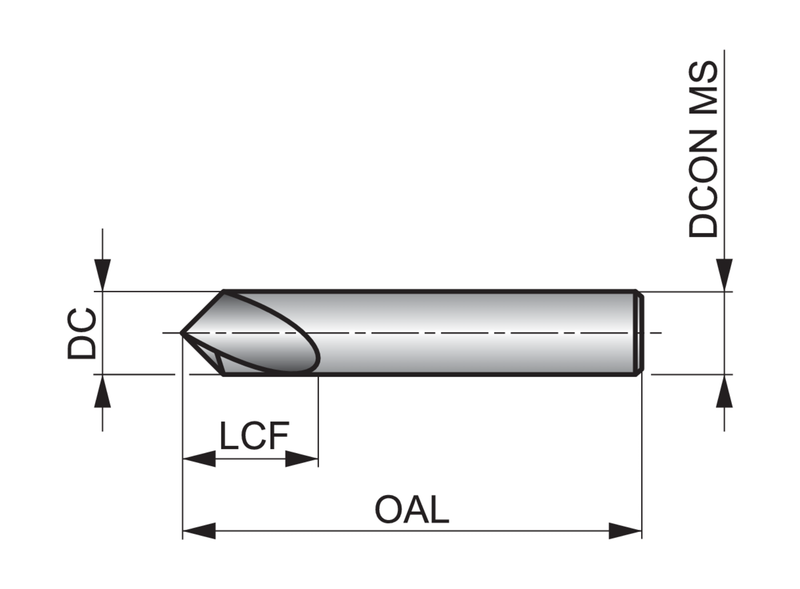

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)1.9685"
Overall Length — mm (OAL)50.0 mm
Flute Length — in (LCF)0.6299"
Flute Length — mm (LCF)16.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7341676
EAN7320760746073
File Type Download
R60116.0 — 3D Model STP Download
R60116.0 — Line Drawing PDF Download
