R601110.0
R601110.0
R601110.0
R601110.0

R601110.0

UGC DOR7341677
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$129.64 CAD - $129.64 CAD
$129.64 CAD
$129.64 CAD - $129.64 CAD
$129.64 CAD

Vendu en lots de : 1

For more information about this product, click here

Identification
Ordering Code (ANSI)R601110,0
Product Name (ISO)R601110.0
GradeTiAlN
Product Number7341677
Product FamilyR6011

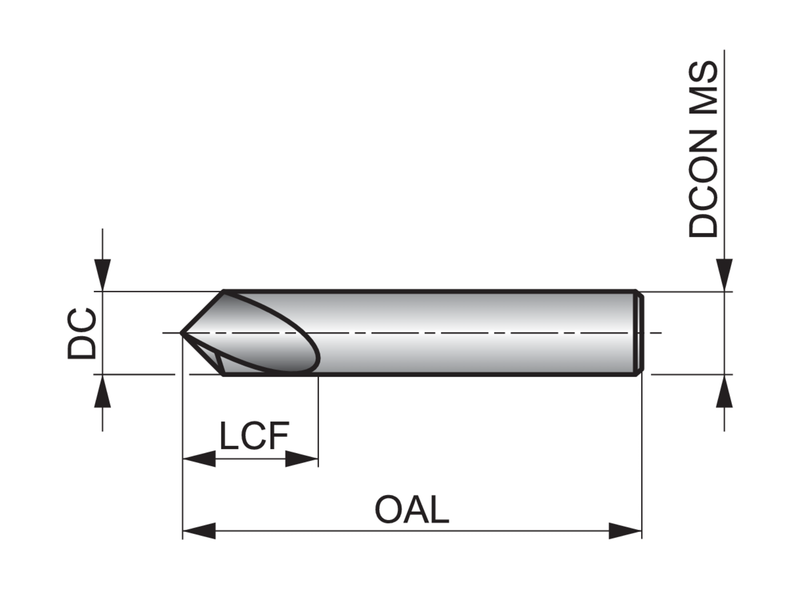

Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Flute Length — in (LCF)0.9843"
Flute Length — mm (LCF)25.0 mm
Length × Diameter Ratio1
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Drill Point Angle (SIG)90°
Tool Information
ShankQueue cylindrique DIN 6535 HA
Direction of ToolD'accord
StandardNorme de travail
Reference Numbers
EDP Number7341677
EAN7320760746080
File Type Download
R601110.0 — 3D Model STP Download
R601110.0 — Line Drawing PDF Download
