50A04R-S45OD05-C
50A04R-S45OD05-C
50A04R-S45OD05-C

50A04R-S45OD05-C

UGC DOR7342881
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$686.00 CAD - $686.00 CAD
$686.00 CAD
$686.00 CAD - $686.00 CAD
$686.00 CAD

Vendu en lots de : 1

Fraise à copier avec géométrie positive/négative utilisant 4 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 42,6mm avec un angle d'attaque de 45 / 90° et un alésage de raccordement de 22mm selon DIN 8030-A, longueur de dépassement de 40mm, arrosage central pour le surfaçage, le copiage, le fraisage d'épaulements peu profonds, le fraisage de gorges peu profondes, l'interpolation hélicoïdale, le fraisage en plongée, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)50A04R-S45OD05-C
Product Number7342881
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

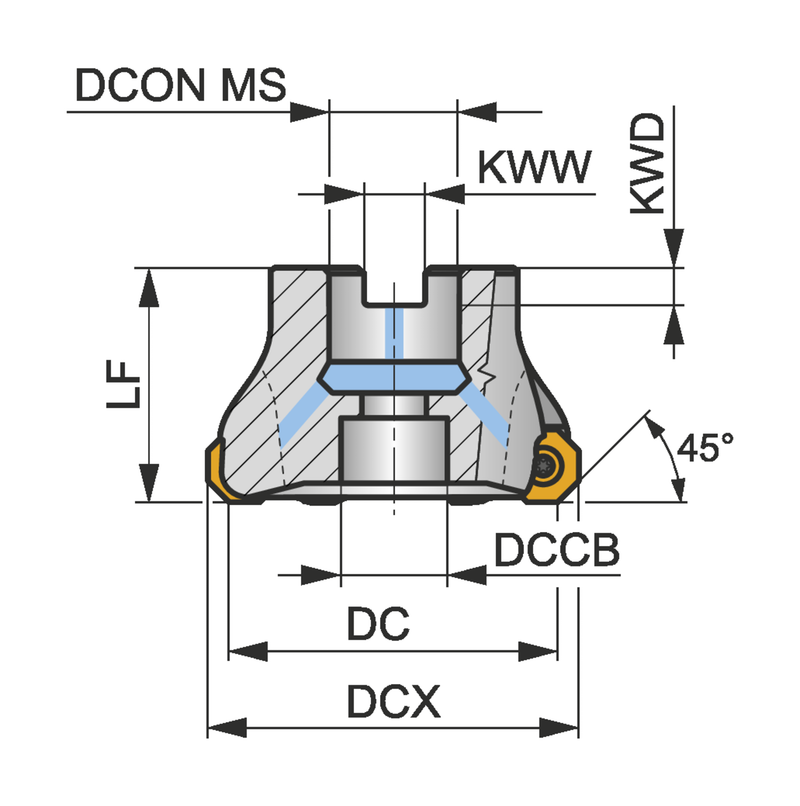

Dimensions
Cutting Diameter — in (DC)1.677"
Cutting Diameter — mm (DC)42.6 mm
Functional Length — mm (LF)40.0 mm
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Tool Information
Tool DesignSOD05
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342881
EAN3603603288027
File Type Download
50A04R-S45OD05-C — 3D Model STP Download
50A04R-S45OD05-C — 2D Model DXF Download
50A04R-S45OD05-C — Line Drawing PDF Download
