80A06R-S45OD05-C
80A06R-S45OD05-C
80A06R-S45OD05-C

80A06R-S45OD05-C

UGC DOR7342885
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$998.00 CAD - $998.00 CAD
$998.00 CAD
$998.00 CAD - $998.00 CAD
$998.00 CAD

Vendu en lots de : 1

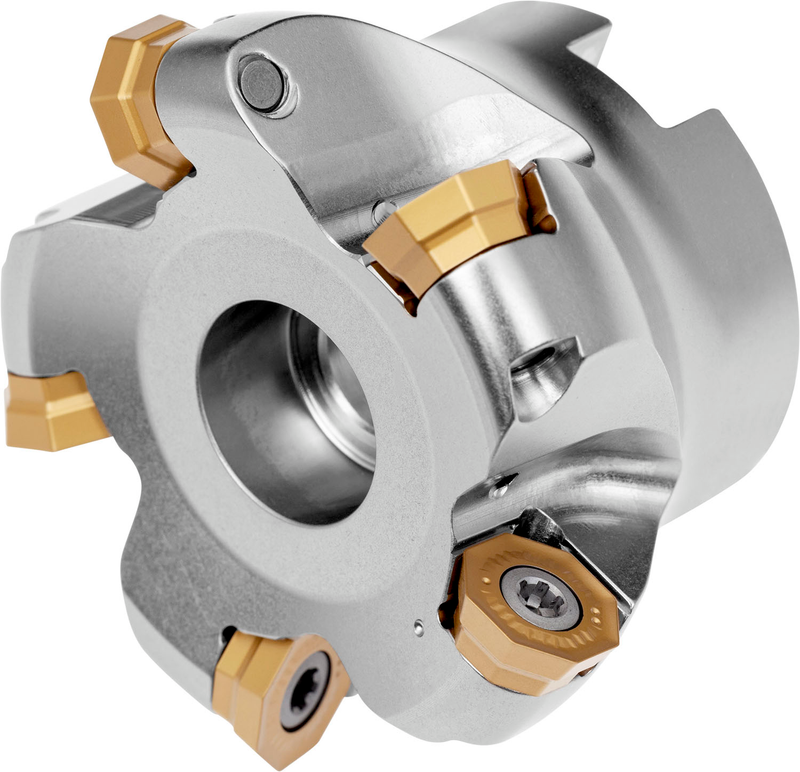

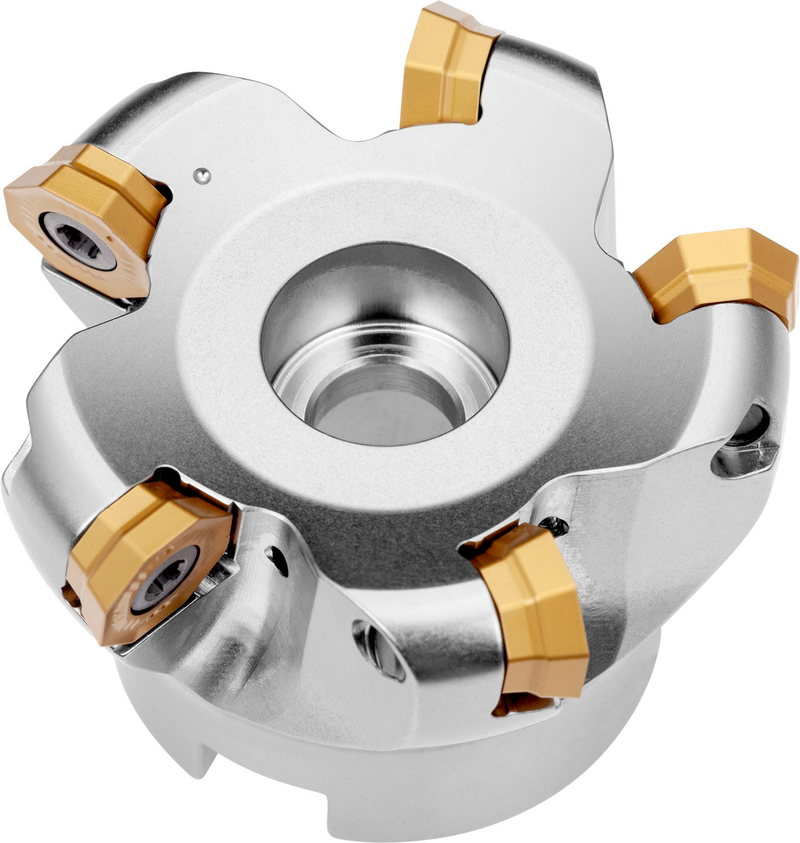

Fraise à copier avec géométrie positive/négative qui utilise 6 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 72,6mm avec angle d'approche de 45 / 90° et alésage de raccordement de 27mm selon DIN 8030-A, longueur de dépassement de 50mm, arrosage central et pas différentiel pour le fraisage en bout, le fraisage de copie, le fraisage d'épaulement peu profond, le fraisage de rainure peu profonde, l'interpolation hélicoïdale, le fraisage en plongée, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A06R-S45OD05-C
Product Number7342885
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

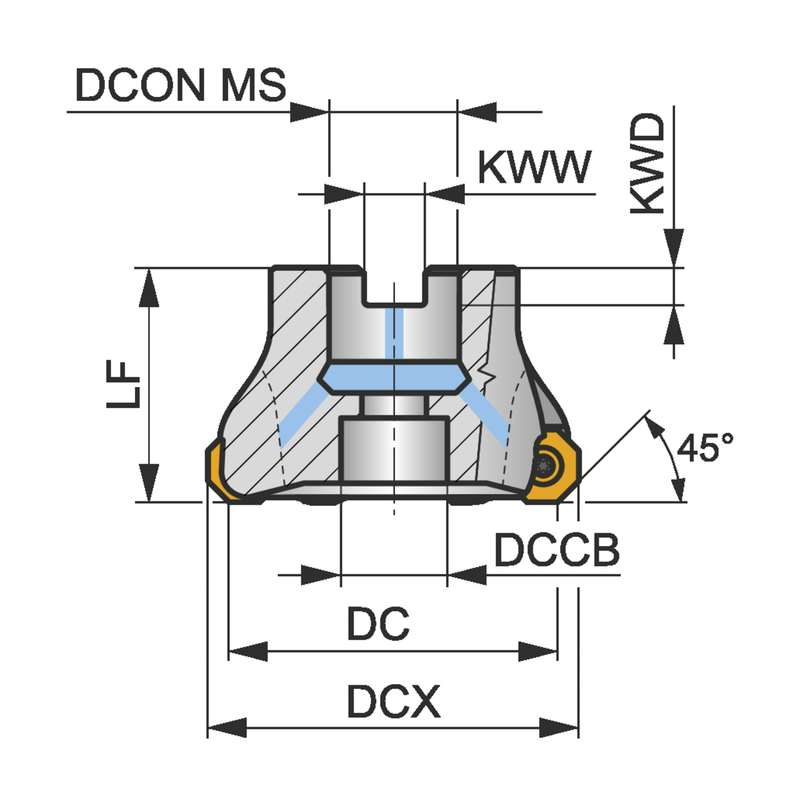

Dimensions
Cutting Diameter — in (DC)2.858"
Cutting Diameter — mm (DC)72.6 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)6
Tool Information
Tool DesignSOD05
ShankFraise cloche DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342885
EAN3603603288065
File Type Download
80A06R-S45OD05-C — 3D Model STP Download
80A06R-S45OD05-C — 2D Model DXF Download
80A06R-S45OD05-C — Line Drawing PDF Download
