80A08R-S45OD05-C
80A08R-S45OD05-C
80A08R-S45OD05-C

80A08R-S45OD05-C

UGC DOR7342886
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$1,112.00 CAD - $1,112.00 CAD
$1,112.00 CAD
$1,112.00 CAD - $1,112.00 CAD
$1,112.00 CAD

Vendu en lots de : 1

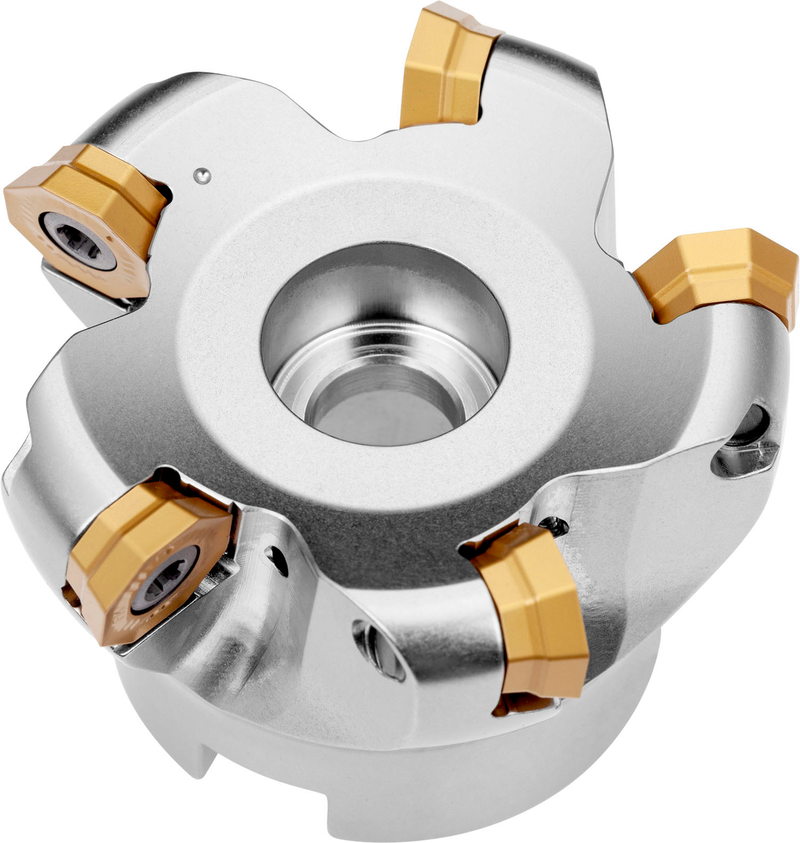

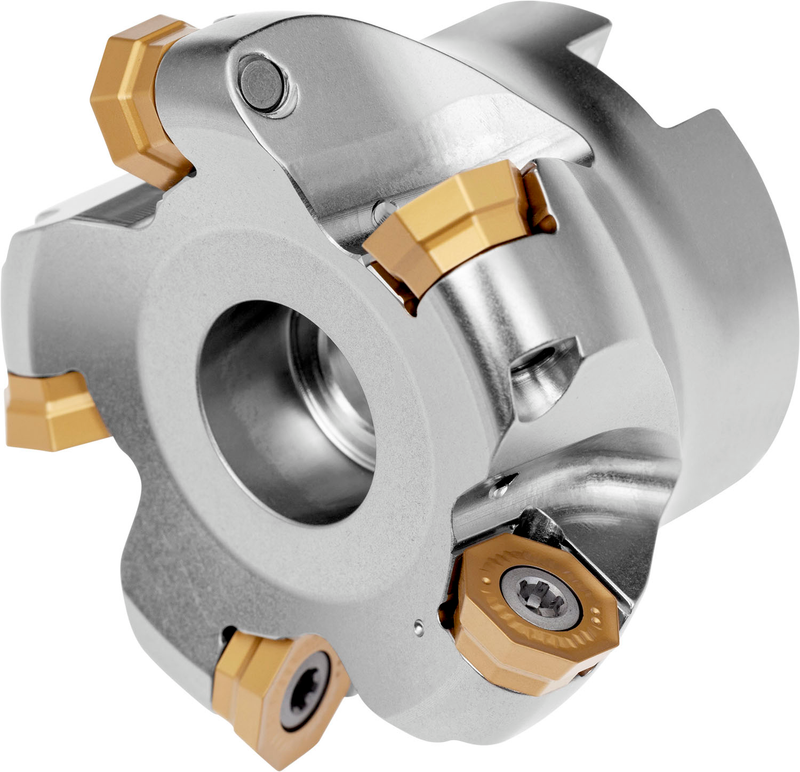

Fraise à copier avec géométrie positive/négative qui utilise 8 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 72,6 mm avec angle d'approche 45 / 90° et alésage de raccordement 27 mm selon DIN 8030-A, longueur de dépassement 50 mm, arrosage central et pas différentiel pour surfaçage, fraisage à copier, fraisage d'épaulement peu profond, fraisage de rainure peu profonde, usinage en ramping, fraisage hélicoïdal, fraisage en plongée, fraisage en plongée progressif et chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0) mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)80A08R-S45OD05-C
Product Number7342886
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

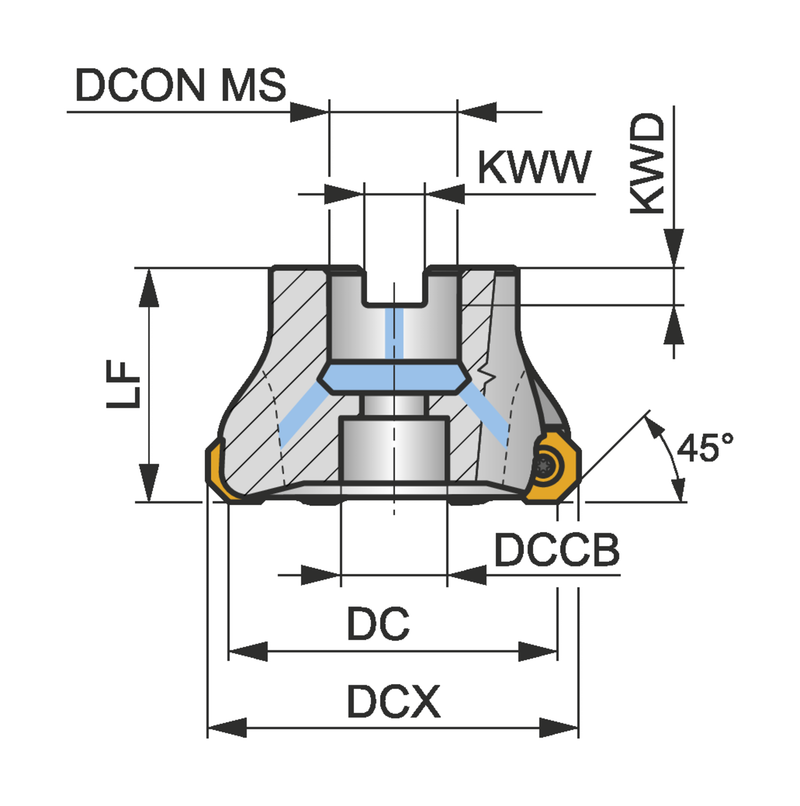

Dimensions
Cutting Diameter — in (DC)2.858"
Cutting Diameter — mm (DC)72.6 mm
Functional Length — mm (LF)50.0 mm
Connection Dia. — in (DCON)1.063"
Connection Dia. — mm (DCON)27.0 mm
Number of Flutes (NOF)8
Tool Information
Tool DesignSOD05
ShankFraise à surfacer-planer DIN 8030 A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342886
EAN3603603288072
File Type Download
80A08R-S45OD05-C — 3D Model STP Download
80A08R-S45OD05-C — 2D Model DXF Download
80A08R-S45OD05-C — Line Drawing PDF Download
