32N3R045A25-SOD05-C
32N3R045A25-SOD05-C
32N3R045A25-SOD05-C

32N3R045A25-SOD05-C

UGC DOR7342889
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$634.00 CAD - $634.00 CAD
$634.00 CAD
$634.00 CAD - $634.00 CAD
$634.00 CAD

Vendu en lots de : 1

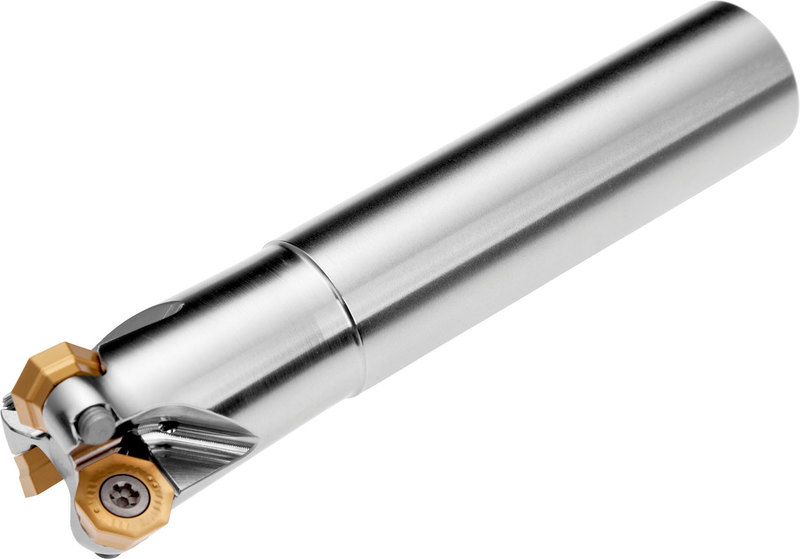

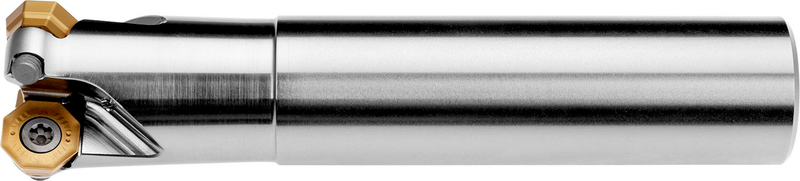

Fraise à copier avec géométrie positive/négative qui utilise 3 plaquettes simple-face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 24,7mm avec angle d'approche 45 / 90° et queue cylindrique 25mm selon DIN 1835A, longueur fonctionnelle 45mm et longueur totale 130mm, arrosage central pour le surfaçage, le copiage, le fraisage d'épaulements légers, le fraisage de gorges légères, l'interpolation hélicoïdale, le fraisage en plongée, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)32N3R045A25-SOD05-C
Product Number7342889
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

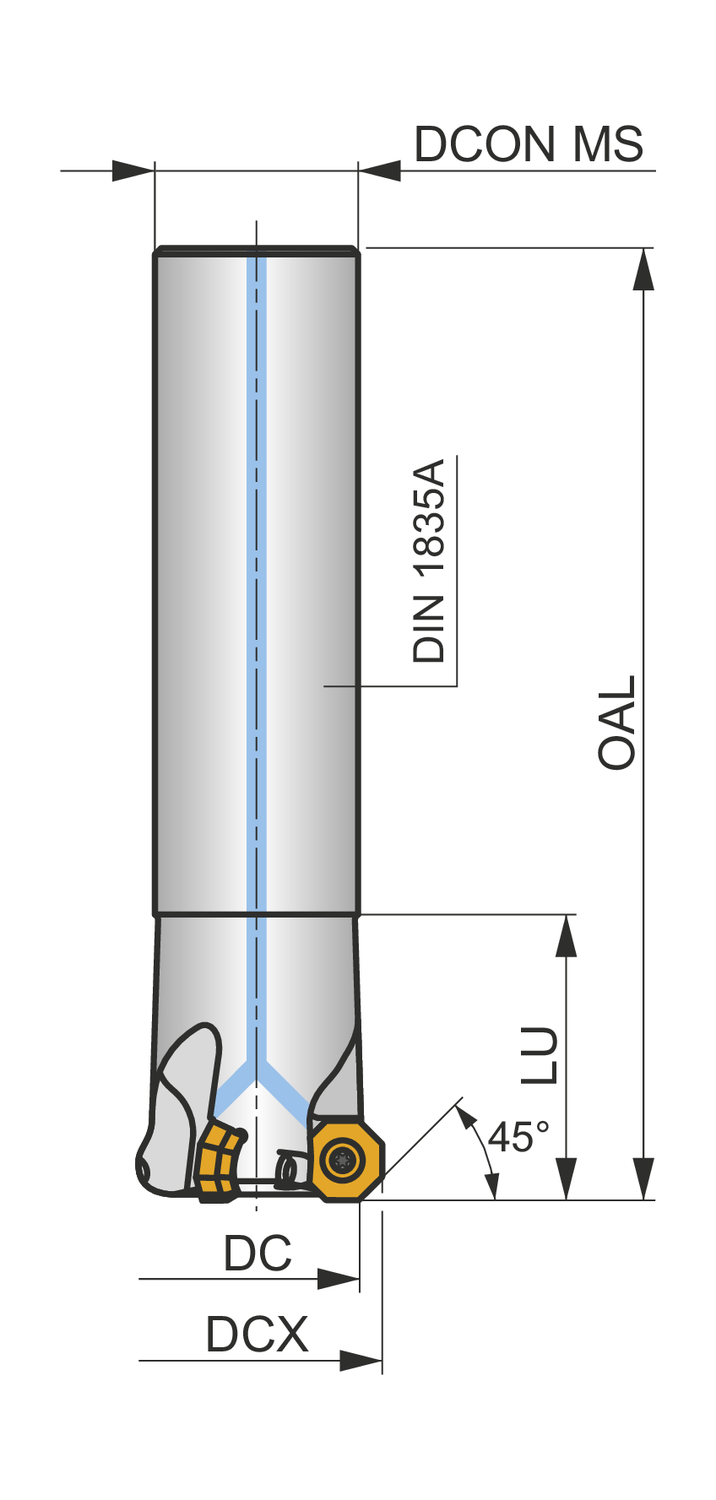

Dimensions
Cutting Diameter — in (DC)0.972"
Cutting Diameter — mm (DC)24.7 mm
Overall Length — in (OAL)5.118"
Overall Length — mm (OAL)130.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)0.984"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSOD05
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342889
EAN3603603288102
File Type Download
32N3R045A25-SOD05-C — 3D Model STP Download
32N3R045A25-SOD05-C — 2D Model DXF Download
32N3R045A25-SOD05-C — Line Drawing PDF Download
