40N3R045A32-SOD05-C
40N3R045A32-SOD05-C
40N3R045A32-SOD05-C

40N3R045A32-SOD05-C

UGC DOR7342890
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$685.00 CAD - $685.00 CAD
$685.00 CAD
$685.00 CAD - $685.00 CAD
$685.00 CAD

Vendu en lots de : 1

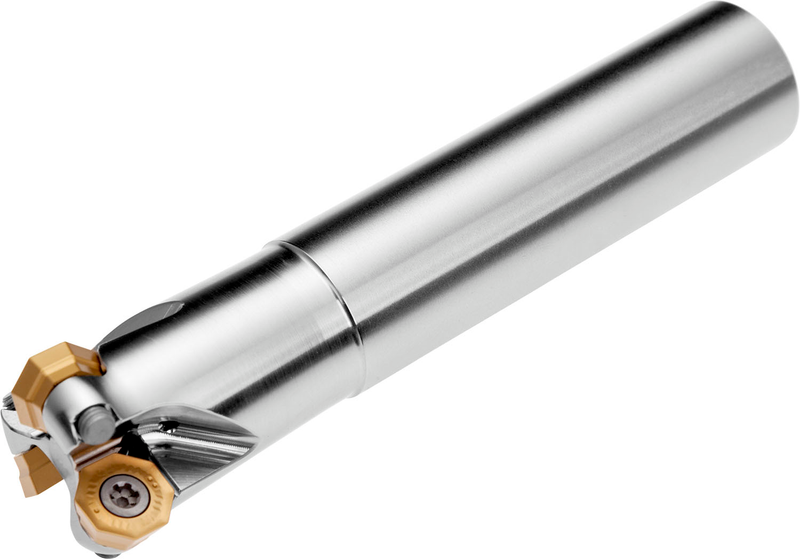

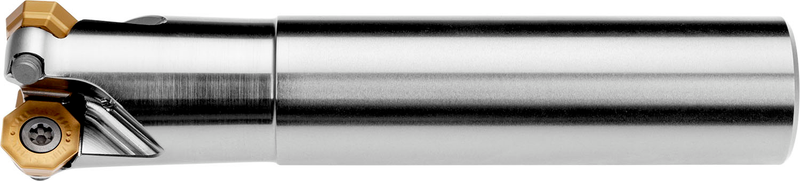

Fraise à surfacer à copier avec géométrie positive/négative qui utilise 3 plaquettes simple face OD.T 05IM, RD.T 12IM ou SD.T 12IM, diamètre de coupe 32,6mm avec un angle d'attaque de 45 / 90° et une queue cylindrique de 32mm selon DIN 1835A, une longueur fonctionnelle de 45mm et une longueur totale de 150mm, arrosage central pour le surfaçage, le fraisage de copiage, le fraisage d'épaulements peu profonds, le fraisage de rainures peu profondes, le fraisage en rampe, le fraisage hélicoïdal, le fraisage en plongée, le fraisage en plongée progressive et le chanfreinage avec une profondeur de coupe maximale de 3,0 (6,0/10,0)mm

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)40N3R045A32-SOD05-C
Product Number7342890
Product FamilySOD05
Insert Geometry
Depth of Cut Max — mm (APMX)2.7 mm

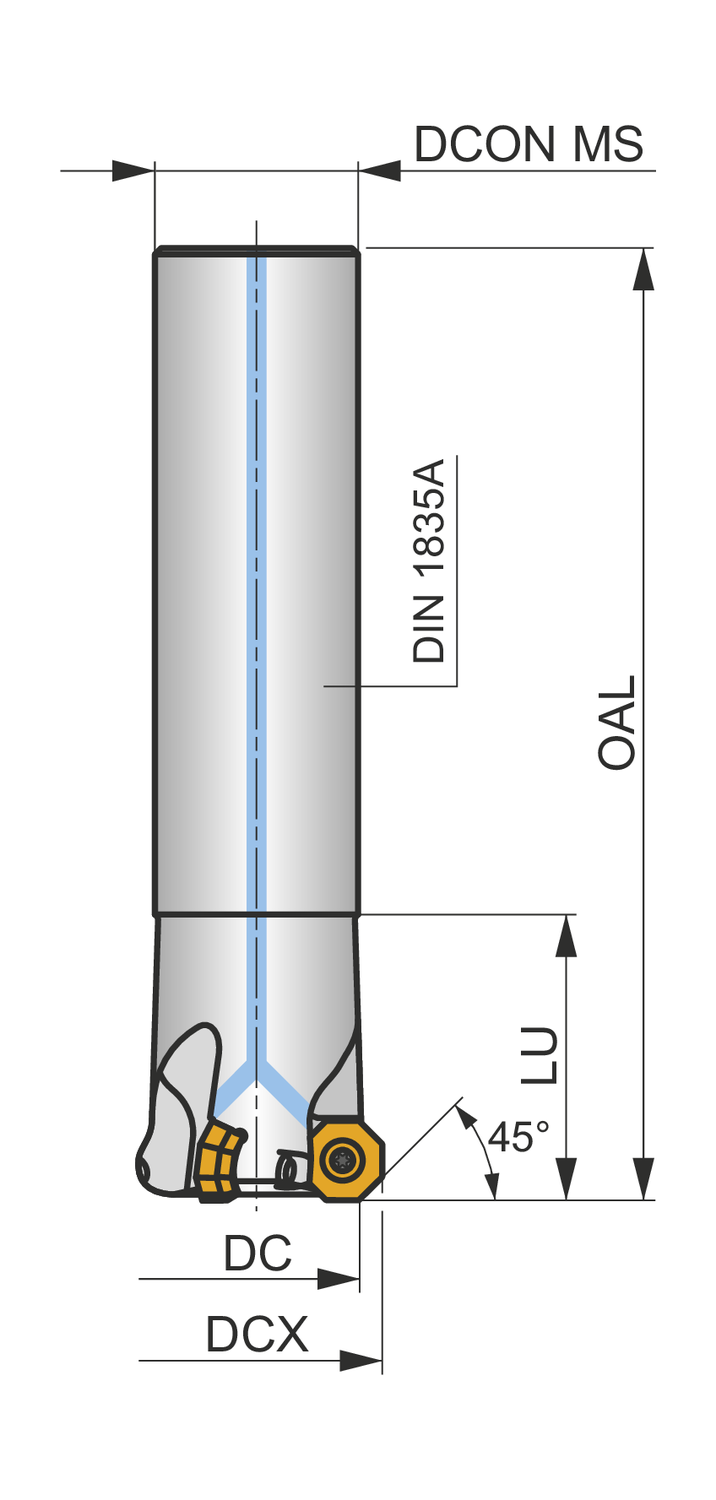

Dimensions
Cutting Diameter — in (DC)1.283"
Cutting Diameter — mm (DC)32.6 mm
Overall Length — in (OAL)5.906"
Overall Length — mm (OAL)150.0 mm
Usable Length — mm (LU)45.0 mm
Connection Dia. — in (DCON)1.26"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)3
Tool Information
Tool DesignSOD05
ShankQueue cylindrique DIN 1835A
Direction of ToolD'accord
Through Coolant Yes
Reference Numbers
EDP Number7342890
EAN3603603288119
File Type Download
40N3R045A32-SOD05-C — 3D Model STP Download
40N3R045A32-SOD05-C — 2D Model DXF Download
40N3R045A32-SOD05-C — Line Drawing PDF Download
