SDKT 1205PDSR-FM:M8345
SDKT 1205PDSR-FM:M8345

SDKT 1205PDSR-FM:M8345

UGC DOR7342910
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$27.86 CAD - $27.86 CAD
$27.86 CAD
$27.86 CAD - $27.86 CAD
$27.86 CAD

Vendu en lots de : 10

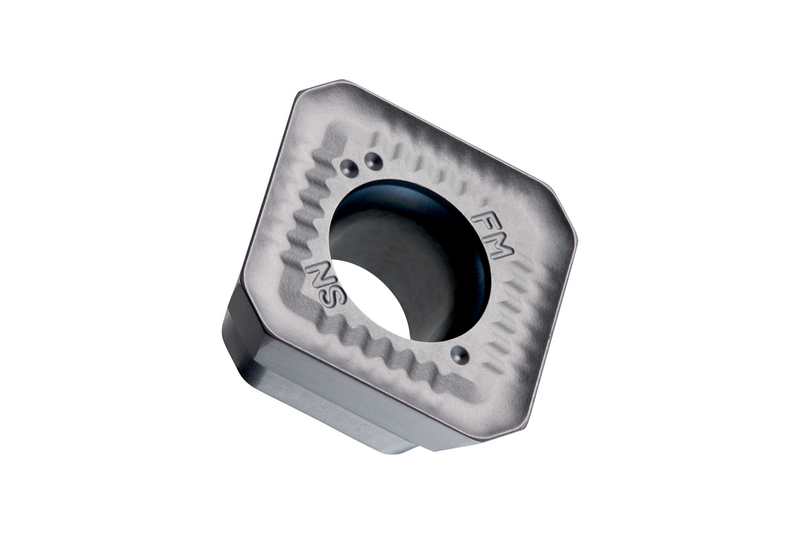

Plaquette de fraisage simple face SDKT 1205 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 10 mm, avec rayon de coin de 0,8 mm, une précision d'indexage selon la classe de tolérance ISO-K et une géométrie FM avec arêtes de coupe arrondies et facette, carbure WC-Co revêtu PVD M8345 de la gamme ISO P30-P50 pour l'usinage de l'acier avec fraises à copier SOD05

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SDKT 1205PDSR-FM:M8345
GradeM8345
Chipbreaker (CBMD)FM
Product Number7342910
Product FamilySDKT 12IM
Insert Geometry
Insert DesignTKS
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.5"
Inscribed Circle Dia. — mm (IC)12.7 mm
Insert Thickness — in (S)0.219"
Insert Thickness — mm (S)5.56 mm
Corner Radius — in (RE)0.031"
Corner Radius — mm (RE)0.8 mm
Depth of Cut Max — in (APMX)0.394"
Depth of Cut Max — mm (APMX)10.0 mm
Tool Information
Reference Numbers
EDP Number7342910
EAN3603603288317
Material Group Suitability
P — Steel and Cast Steel Usage principal
M — Stainless Steel Utilisation possible
File Type Download

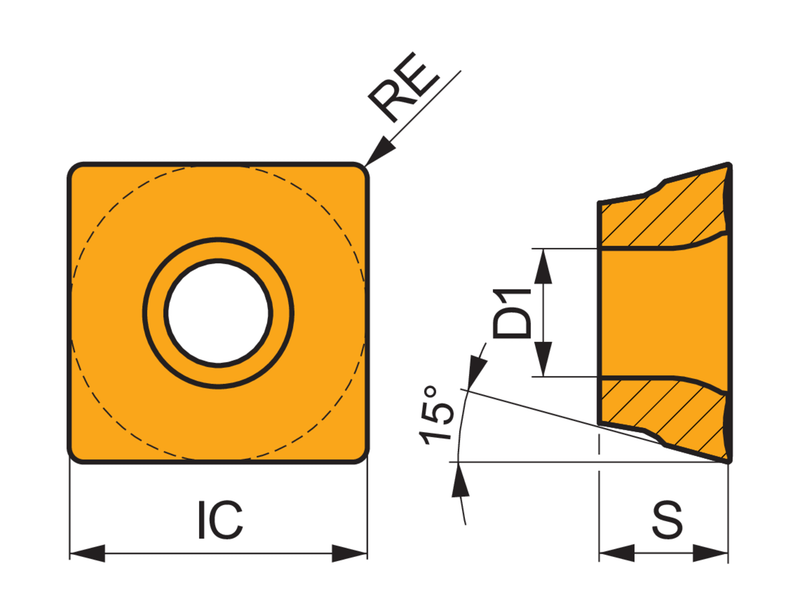

SDKT 1205PDSR-FM:M8345 — Line Drawing PDF Download
