SOMT 050204SR-M:M6330
SOMT 050204SR-M:M6330

SOMT 050204SR-M:M6330

UGC DOR7343037
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.23 CAD - $17.23 CAD
$17.23 CAD
$17.23 CAD - $17.23 CAD
$17.23 CAD

Vendu en lots de : 10

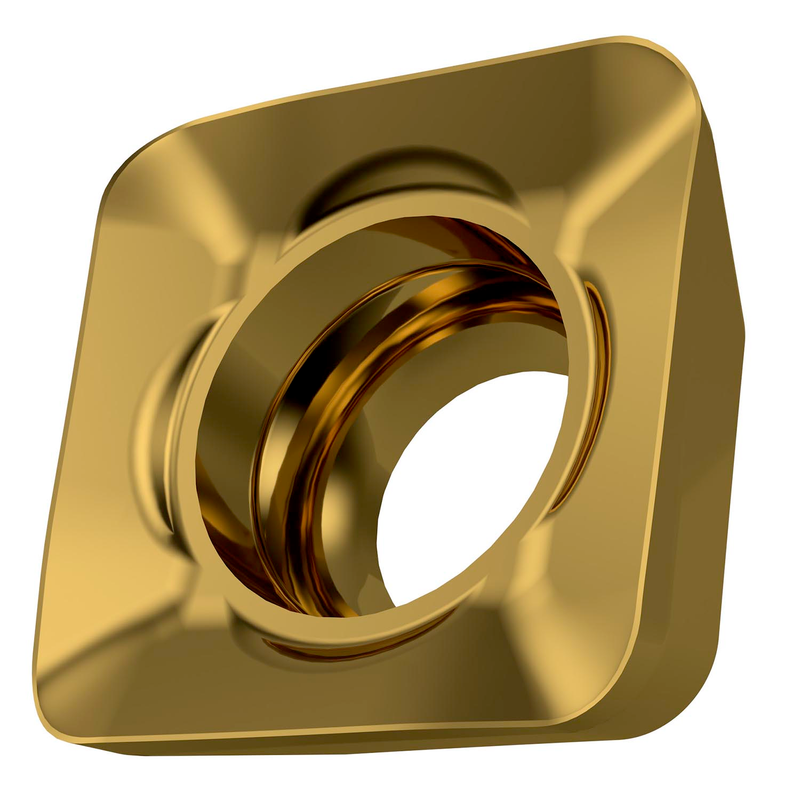

Plaquette de fraisage simple face SOMT 0502 avec brise-copeaux, carrée pour une profondeur de coupe maximale de 4,5 mm, avec rayon de bec de 0,4 mm, une précision de positionnement selon la classe de tolérance ISO-M et géométrie M avec arêtes de coupe et facette arrondies, carbure WC-Co revêtu PVD M6330 de classe ISO M20-M35 pour l'usinage de l'acier inoxydable avec les fraises à surfacer et à copier SSO05O

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)SOMT 050204SR-M:M6330
GradeM6330
Chipbreaker (CBMD)M
Product Number7343037
Product FamilySOMT 05

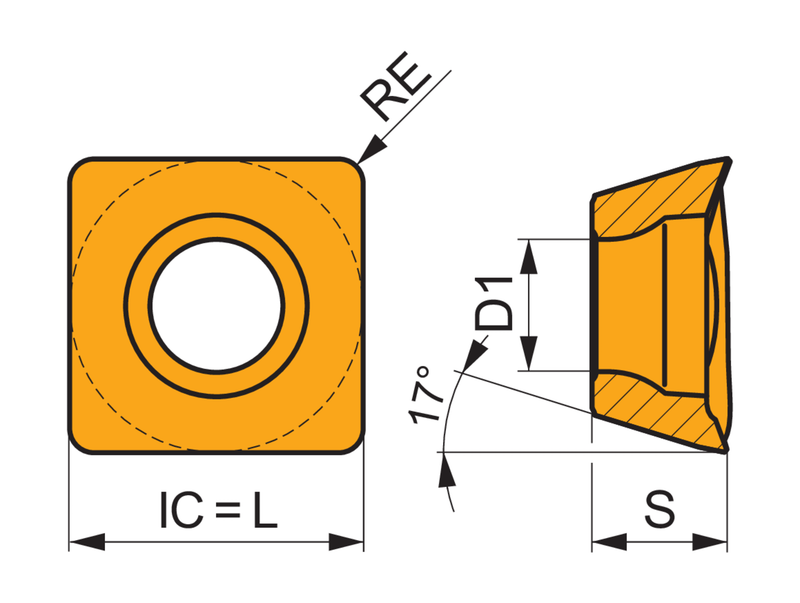

Insert Geometry
Insert DesignSDST
Insert Shape Code (SC)C - carré
Inscribed Circle Dia. — in (IC)0.219"
Inscribed Circle Dia. — mm (IC)5.57 mm
Insert Thickness — in (S)0.104"
Insert Thickness — mm (S)2.63 mm
Corner Radius — in (RE)0.016"
Corner Radius — mm (RE)0.4 mm
Depth of Cut Max — in (APMX)0.177"
Depth of Cut Max — mm (APMX)4.5 mm
Tool Information
Reference Numbers
EDP Number7343037
EAN3603603288638
File Type Download
SOMT 050204SR-M:M6330 — Line Drawing PDF Download
