LNGF 300715-PM:T7325
LNGF 300715-PM:T7325

LNGF 300715-PM:T7325

UGC DOR7347210
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.79 CAD - $52.79 CAD
$52.79 CAD
$52.79 CAD - $52.79 CAD
$52.79 CAD

Vendu en lots de : 5

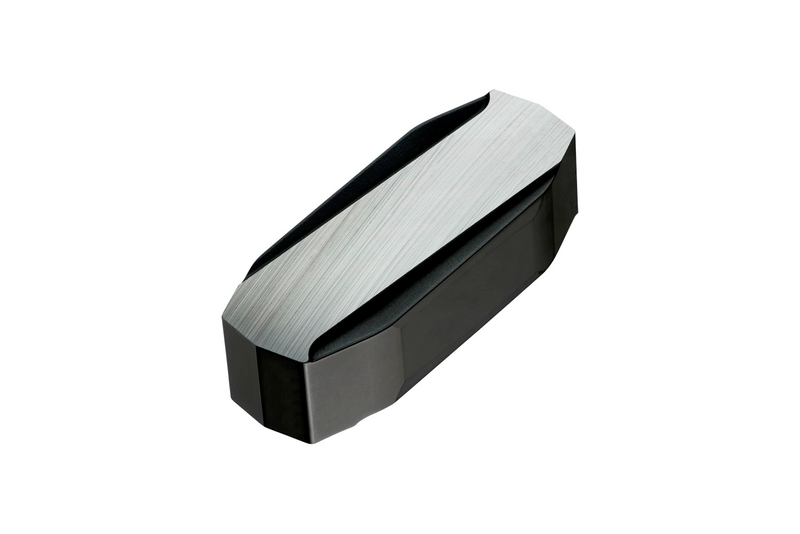

Plaquette de tournage négative double face pour le douage à la barre, rectangulaire, avec une longueur de 30,12 mm, une épaisseur de 7,94 mm pour une profondeur de coupe de 1,5 mm, une précision de positionnement selon la classe de tolérance ISO-G, un brise-copeaux PM, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 300715-PM:T7325
GradeT7325
Chipbreaker (CBMD)MP
Product Number7347210
Product FamilyLNGF 30
Insert Geometry
Insert DesignLNGF 30
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.297"
Insert Thickness — mm (S)7.54 mm
Depth of Cut Max — in (APMX)0.059"
Depth of Cut Max — mm (APMX)1.5 mm
Tool Information
Reference Numbers
EDP Number7347210
EAN3603603295025
File Type Download

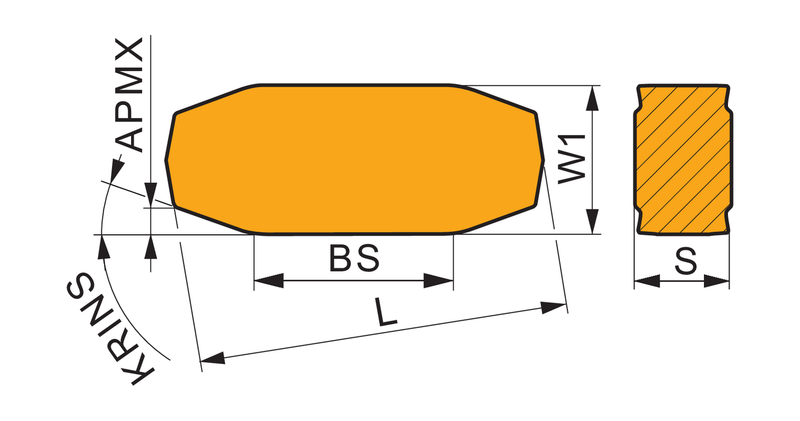

LNGF 300715-PM:T7325 — Line Drawing PDF Download
