LNGF 361220-PM-S01:T7325
LNGF 361220-PM-S01:T7325

LNGF 361220-PM-S01:T7325

UGC DOR7347215
par Dormer Pramet
Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$76.43 CAD - $76.43 CAD
$76.43 CAD
$76.43 CAD - $76.43 CAD
$76.43 CAD

Vendu en lots de : 5

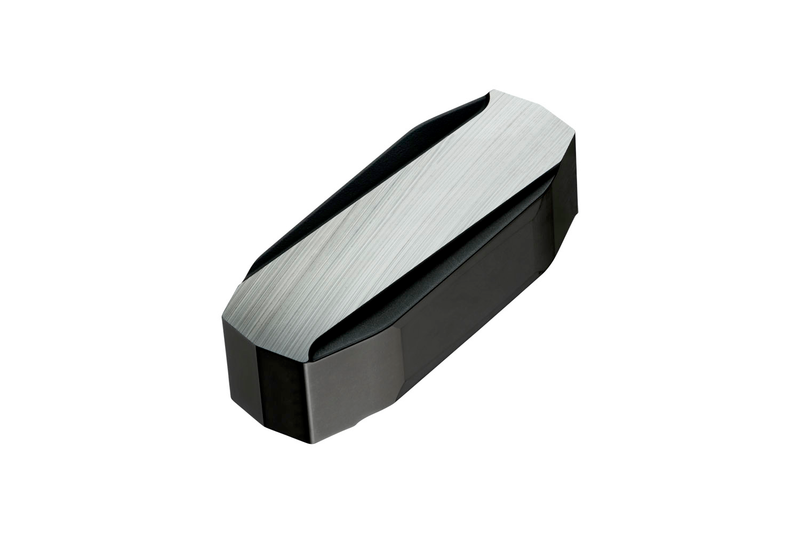

Plaquette à barre d'épluchage négative double face, rectangulaire d'une longueur de 36,5 mm, épaisseur de 12 mm pour une profondeur de coupe de 2 mm, précision d'indexage selon la classe de tolérance ISO-G, brise-copeaux PM avec préparation d'arête de coupe S01, en nuance T7325, un carbure WC-Co à gradient fonctionnel revêtu MT-CVD

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)LNGF 361220-PM-S01:T7325
GradeT7325
Chipbreaker (CBMD)PM-S01
Product Number7347215
Product FamilyLNGF 36
Insert Geometry
Insert DesignLNGF 36
Insert Shape Code (SC)L - rectangulaire
Insert Thickness — in (S)0.472"
Insert Thickness — mm (S)12.0 mm
Depth of Cut Max — in (APMX)0.079"
Depth of Cut Max — mm (APMX)2.0 mm
Tool Information
Reference Numbers
EDP Number7347215
EAN3603603295070
File Type Download

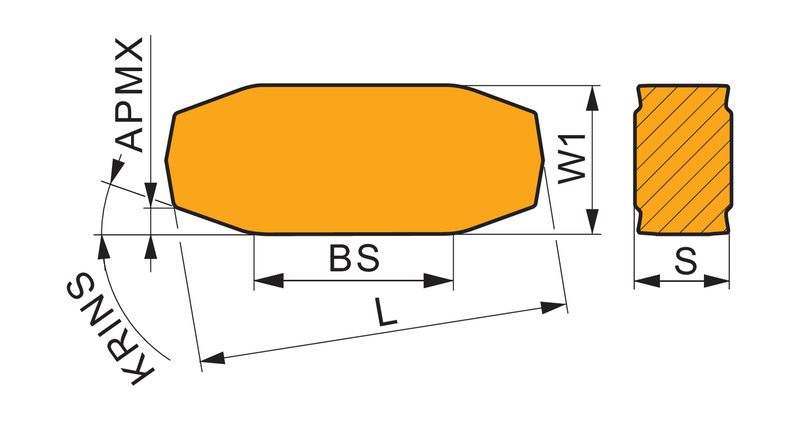

LNGF 361220-PM-S01:T7325 — Line Drawing PDF Download
